ROHM provides a recommended PCB layout in their application note (AN191) for thermal optimization. It suggests using a thermal pad, vias, and a heat sink to improve heat dissipation.
To ensure reliability, follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms. ROHM also provides reliability data in their datasheet and application notes.
The maximum allowed voltage is specified in the datasheet as 40V. However, it's essential to consider voltage spikes and transients when designing the circuit. ROHM recommends using voltage protection devices, such as TVS diodes, to ensure the device's reliability.
The current sense resistor value depends on the desired current sensing accuracy, PCB layout, and the device's current rating. ROHM provides a calculation formula in their application note (AN191) to help select the optimal current sense resistor value.
ROHM has implemented ESD protection and latch-up prevention measures in the RB088BGE-40TL. However, it's still essential to follow proper ESD handling procedures during assembly and testing. Additionally, design the PCB with ESD protection in mind, using components like TVS diodes and resistors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RB088BGE-40TL Overview

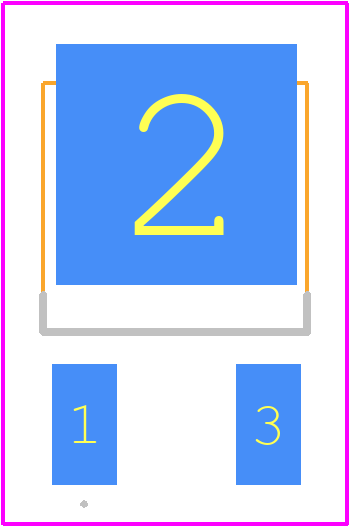

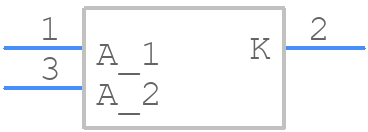

Use the download button to access the RB088BGE-40TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RB088,
or try a keyword search, such as Rectifier Diodes
