RB095BGE-40TL - ROHM Semiconductor

Description: 40V, 6A, TO-252 (DPAK), Schottky Barrier Diode

Download RB095BGE-40TL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

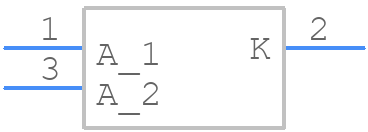

RB095BGE-40TL - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

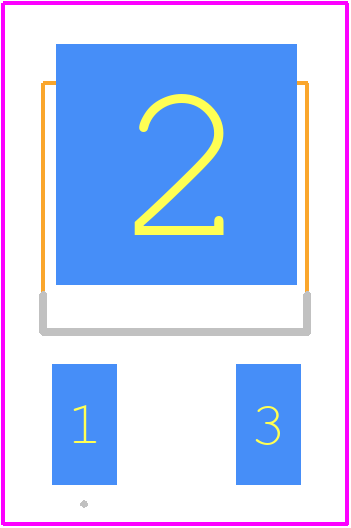

RB095BGE-40TL - ROHM Semiconductor PCB footprint - Other - Other - TO-252 (DPAK)_Master
click to zoom
3D Models
RB095BGE-40TL - ROHM Semiconductor - 3D model - Other - TO-252 (DPAK)_Master
click to zoom

RB095BGE-40TL Details

  • Manufacturer Part Number:

    RB095BGE-40TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Date Of Intro:

    2018-06-13

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.12

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Case Connection:

    CATHODE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.55 V

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    50 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    45 V

  • Reverse Current-Max:

    100 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

RB095BGE-40TL Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the RB095BGE-40TL is -40°C to 125°C.
  • To ensure reliability, follow the recommended derating curves for voltage and current, and consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
  • The maximum allowable power dissipation for the RB095BGE-40TL is 1.5W, but this value can be affected by the operating temperature and thermal resistance of the package.
  • Yes, the RB095BGE-40TL can be used in switching regulator applications, but ensure that the device is properly biased and that the switching frequency is within the recommended range to avoid oscillation or instability.
  • Handle the RB095BGE-40TL with ESD-protective equipment and follow proper ESD handling procedures to prevent damage. Use an ESD-protected workstation, wear an ESD strap, and use ESD-protected packaging and storage materials.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RB095BGE-40TL Overview

Use the download button to access the RB095BGE-40TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RB095, or try a keyword search, such as Rectifier Diodes
