RB095BGE-90TL - ROHM Semiconductor

Description: Schottky Diodes & Rectifiers 90V Vr; 6A Io TO-252 SBD

Download RB095BGE-90TL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

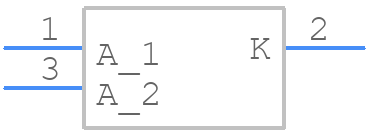

RB095BGE-90TL - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

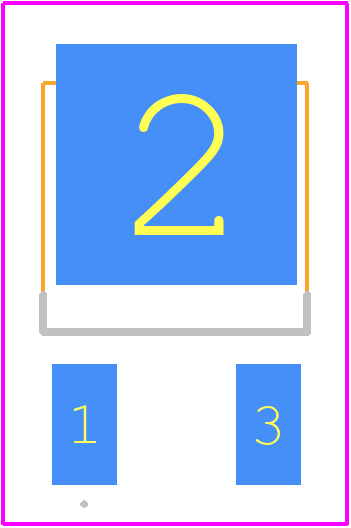

RB095BGE-90TL - ROHM Semiconductor PCB footprint - Other - Other - TO-252 (DPAK)_Master
click to zoom
3D Models
RB095BGE-90TL - ROHM Semiconductor - 3D model - Other - TO-252 (DPAK)_Master
click to zoom

RB095BGE-90TL Details

  • Manufacturer Part Number:

    RB095BGE-90TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    21 Weeks

  • Date Of Intro:

    2018-06-13

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.22

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Case Connection:

    CATHODE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.75 V

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    50 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    90 V

  • Reverse Current-Max:

    150 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30
