RB218NS-60TL - ROHM Semiconductor

Description: Super Low IR, 60V, 20A, TO-263S (D2PAK), Schottky Barrier Diode

Download RB218NS-60TL Model

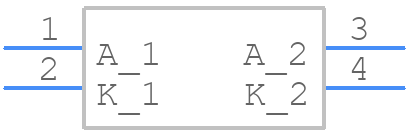

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

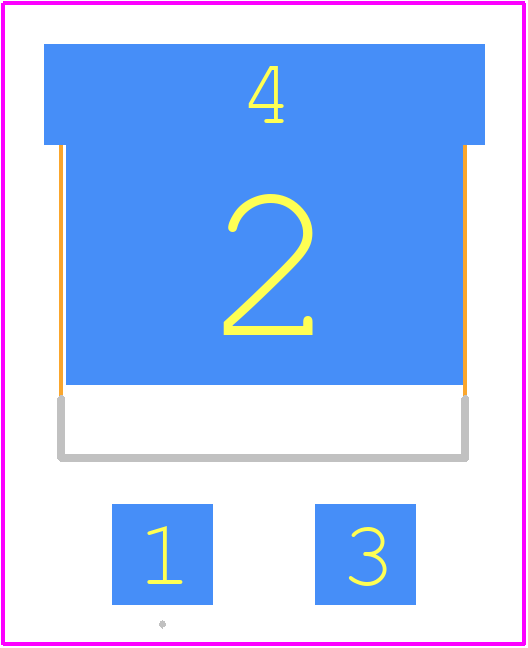

RB218NS-60TL - ROHM Semiconductor PCB footprint - Other - Other - RB218NS-60TL-2
click to zoom
3D Models
RB218NS-60TL - ROHM Semiconductor  - 3D model - Other - RB218NS-60TL-2
click to zoom

RB218NS-60TL Details

  • Manufacturer Part Number:

    RB218NS-60TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-83, TO-263S, 3/2 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.38

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Case Connection:

    CATHODE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.83 V

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • Non-rep Pk Forward Current-Max:

    100 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Rep Pk Reverse Voltage-Max:

    60 V

  • Reverse Current-Max:

    5 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

RB218NS-60TL Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm, with multiple vias connecting to a solid ground plane to ensure efficient heat dissipation.
  • To ensure reliability, follow the recommended operating temperature range (up to 150°C), use a suitable thermal interface material, and consider derating the device's power rating at higher temperatures.
  • The maximum allowed Vgs is ±20V, but it's recommended to keep it within ±10V to ensure reliable operation and prevent damage to the device.
  • While the RB218NS-60TL can handle high-frequency switching, it's essential to consider the device's switching losses, gate charge, and layout parasitics to ensure reliable operation and minimize EMI.
  • The gate resistor value depends on the specific application, but a general guideline is to use a value between 10Ω to 100Ω to balance switching speed and noise immunity.
