RB731XNTR - ROHM Semiconductor

Description: 40V, 30mA, SOT-363, Schottky Barrier Diode

Download RB731XNTR Model

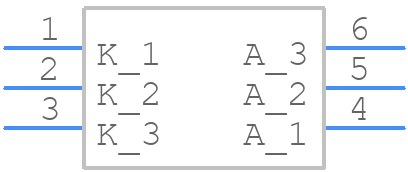

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RB731XNTR - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 SC-88 UMD6
click to zoom
3D Models
RB731XNTR - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - SOT-363 SC-88 UMD6
click to zoom

RB731XNTR Details

  • Manufacturer Part Number:

    RB731XNTR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.37 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    40 V

  • Reverse Current-Max:

    1 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

RB731XNTR Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Additionally, ensure the input capacitor is rated for the maximum input voltage.
  • The input voltage ripple should be limited to 1% of the nominal input voltage to ensure stable operation. Excessive ripple can cause output voltage fluctuations.
  • While the RB731XNTR is rated for operation up to 105°C, it's essential to consider the derating curves for output current and voltage regulation. Consult the datasheet for specific derating information.
  • Implement overcurrent protection using a fuse or a current-sensing resistor. Additionally, consider using a short-circuit protection IC or a dedicated overvoltage protection circuit.
