- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RBDC-20-63+
- Part Number RBDC-20-63+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - RBDC-20-63+-2
- Released Date Nov 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RBDC-20-63+ Details
-
Manufacturer Part Number:
RBDC-20-63+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.99
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
23.98 dBm
-
Insertion Loss-Max:
1.6 dB
-
Mounting Feature:
SURFACE MOUNT
RBDC-20-63+ Frequently Asked Questions (FAQs)
-
A recommended PCB layout and footprint can be found in the Mini-Circuits application note AN-60-014, which provides guidelines for optimal performance and minimization of parasitic effects.
-
Impedance matching can be achieved using a pi-network or a T-network topology. Mini-Circuits provides a matching calculator tool on their website to help with the design process.
-
The maximum power handling of the RBDC-20-63+ is 1W. Exceeding this power rating may cause damage to the device or affect its performance.
-
Yes, the RBDC-20-63+ is designed to meet the requirements of high-reliability and space-constrained applications. It is built with a ruggedized design and is suitable for use in harsh environments.
-
Common issues with the RBDC-20-63+ can be troubleshooted by checking for proper power supply, ensuring correct impedance matching, and verifying the device is operated within its specified frequency range.
Trust Checks
Expert Contribution
System Verified
Community Approved
RBDC-20-63+ Overview

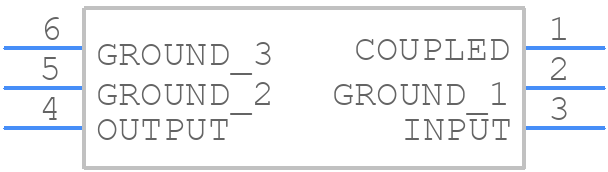

Use the download button to access the RBDC-20-63+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RBDC-,
or try a keyword search, such as RF/Microwave Couplers
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
