RBLQ10RSM10TL - ROHM Semiconductor

RBLQ10RSM10TL Details

• Manufacturer Part Number:

  RBLQ10RSM10TL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

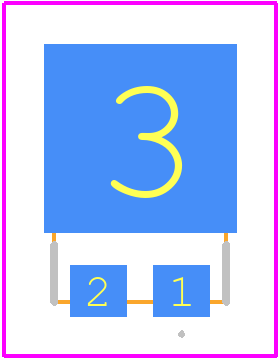

• Package Description:

  TO-277A, 3 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Date Of Intro:

  2020-10-02

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  6.38

• Additional Feature:

  FREE WHEELING DIODE, HIGH RELIABILITY

• Application:

  GENERAL PURPOSE

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.67 V

• JESD-30 Code:

  R-PDSO-F3

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  200 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  150 °C

• Output Current-Max:

  10 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, EMBOSSED, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Rep Pk Reverse Voltage-Max:

  100 V

• Reverse Current-Max:

  80 µA

• Reverse Test Voltage:

  100 V

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  FLAT

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
