RBP-135+ - Mini-Circuits

Description: Metal Shield Bandpass Filter

Download RBP-135+ Model

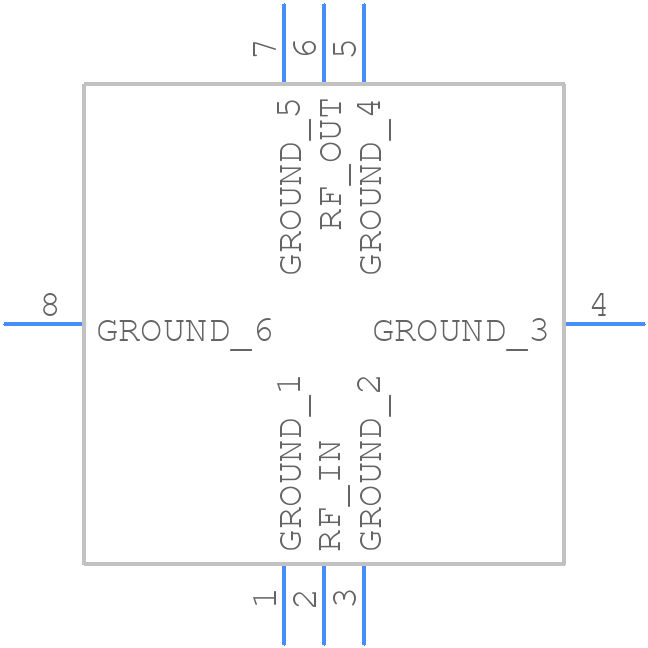

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RBP-135+ - Mini-Circuits PCB footprint - Other - Other - RBP-135+-2
click to zoom
3D Models
RBP-135+ - Mini-Circuits  - 3D model - Other - RBP-135+-2
click to zoom

RBP-135+ Details

  • Manufacturer Part Number:

    RBP-135+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Attenuation Frequency-Max:

    2000 MHz

  • Attenuation Frequency-Min:

    85 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    135 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.5 dB

  • JESD-609 Code:

    e4

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR:

    1.3

  • Width:

    8.89 mm

RBP-135+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible noise figure, ensure that the input and output impedances are matched to 50 ohms, and the device is operated within its recommended operating conditions. Additionally, use a high-quality, low-noise power supply and minimize the length of the input and output transmission lines.
  • The maximum power handling capability of the RBP-135+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to +15 dBm of input power without damage. Exceeding this limit may result in reduced performance or even damage to the device.
  • While the RBP-135+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, impedance matching networks may be required to optimize performance. Consult with Mini-Circuits' application engineers or a qualified RF design expert for guidance on impedance matching and performance expectations.
  • The operating temperature range for the RBP-135+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related performance characteristics.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RBP-135+ Overview

Use the download button to access the RBP-135+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RBP-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
