RBP-173+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download RBP-173+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

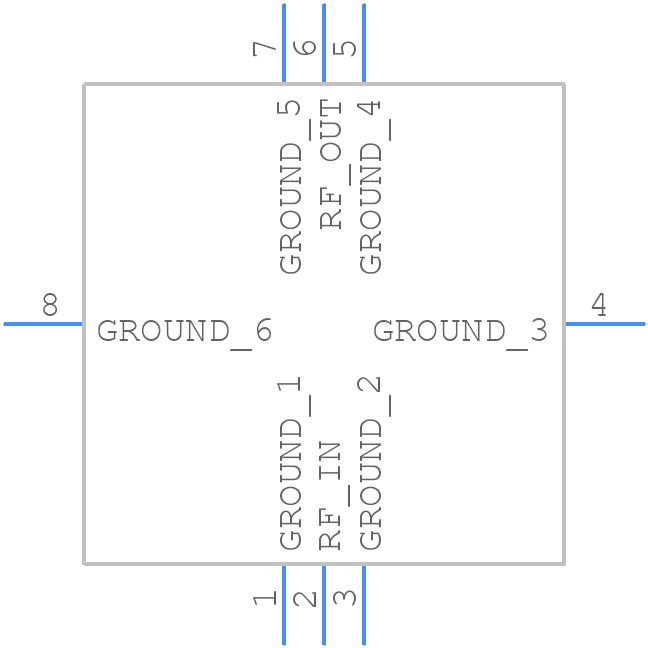

RBP-173+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RBP-173+ - Mini-Circuits PCB footprint - Other - Other - GP731_2023
click to zoom
3D Models
RBP-173+ - Mini-Circuits - 3D model - Other - GP731_2023
click to zoom

RBP-173+ Details

  • Manufacturer Part Number:

    RBP-173+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Attenuation Frequency-Max:

    245 MHz

  • Attenuation Frequency-Min:

    129 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    172.5 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.5 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.8

  • Width:

    8.89 mm

RBP-173+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible noise figure, ensure that the input and output impedances are matched to 50 ohms, and use a high-quality, low-noise power supply. Additionally, keep the device away from noise sources and use proper shielding and grounding techniques.
  • While the datasheet doesn't specify a maximum power handling capability, Mini-Circuits recommends that the input power should not exceed +15 dBm to avoid damage to the device. Exceeding this limit may result in reduced performance, reliability issues, or even permanent damage.
  • While the RBP-173+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance. It's recommended to consult with Mini-Circuits' application engineers for guidance on impedance matching and potential performance impacts.
  • The RBP-173+ is specified to operate from -40°C to +85°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and reliability may be affected. It's recommended to consult with Mini-Circuits for specific guidance on operating temperature ranges and potential performance impacts.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RBP-173+ Overview

Use the download button to access the RBP-173+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RBP-1, or try a keyword search, such as General Purpose Passive Filters
