RBP-220W+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download RBP-220W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

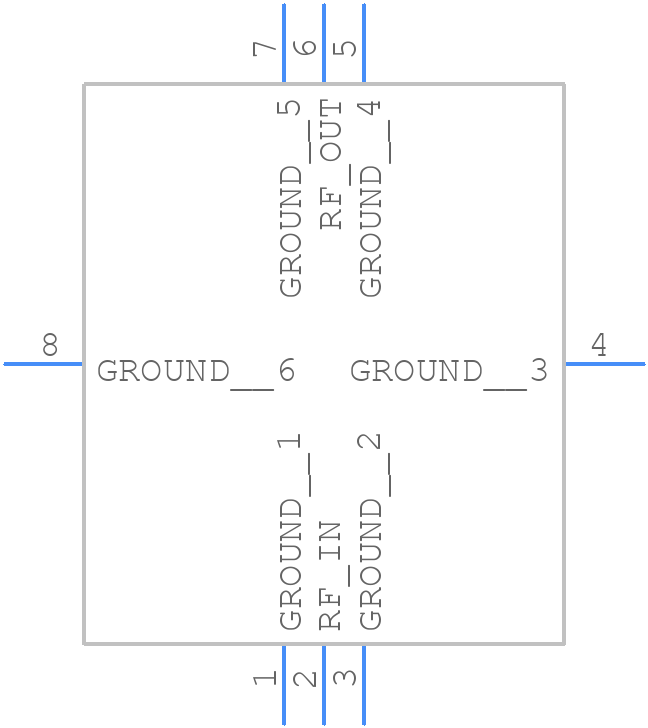

Symbol
RBP-220W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RBP-220W+ - Mini-Circuits PCB footprint - Other - Other - RBP-220W+-1
click to zoom
3D Models
RBP-220W+ - Mini-Circuits - 3D model - Other - RBP-220W+-1
click to zoom

RBP-220W+ Details

  • Manufacturer Part Number:

    RBP-220W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Attenuation Frequency-Max:

    2000 MHz

  • Attenuation Frequency-Min:

    80 MHz

  • Attenuation@Freq-Max:

    30 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    220 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.5 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.4

  • Width:

    8.89 mm

RBP-220W+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
  • The RBP-220W+ requires a bias tee or a separate bias circuit to provide the necessary voltage and current. The recommended bias voltage is 12V to 15V, and the recommended bias current is 1A to 2A.
  • The RBP-220W+ can handle up to 220W of input power, but it's recommended to derate the power to 150W to 180W for optimal performance and reliability.
  • Common issues can be troubleshooted by checking the PCB layout and thermal management, ensuring proper biasing, and verifying the input power and signal quality. Mini-Circuits also provides application notes and technical support for troubleshooting.
  • Yes, the RBP-220W+ is a high-power device and requires proper EMI/EMC design considerations, such as shielding, filtering, and grounding, to minimize electromagnetic interference and ensure compliance with regulatory standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RBP-220W+ Overview

Use the download button to access the RBP-220W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RBP-2, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
