- Part Number RBP-263+
- Manufacturer Mini-Circuits
- Pin Count 8
- Part Category Filter
- Package Category Other
- Footprint Name Other - RBP-263+-2
- Released Date Feb 28, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RBP-263+ Details
-
Manufacturer Part Number:
RBP-263+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.79
-
Attenuation Frequency-Max:
500 MHz
-
Attenuation Frequency-Min:
140 MHz
-
Attenuation@Freq-Max:
35 dB
-
Attenuation@Freq-Min:
20 dB
RBP-263+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout in their application note AN-60-014, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize parasitic effects.
-
The RBP-263+ can be biased in either a single-supply or dual-supply configuration. The choice depends on the specific application requirements, such as output voltage swing and current consumption. Consult the datasheet and application notes for guidance on selecting the appropriate biasing configuration.
-
The maximum input power rating for the RBP-263+ is 23 dBm. Exceeding this rating may cause damage to the device or affect its performance. Ensure that the input power is within the recommended range to maintain optimal performance and reliability.
-
Yes, the RBP-263+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper operation and minimize unwanted oscillations.
-
The typical noise figure of the RBP-263+ is around 3.5 dB, which is relatively low for a broadband amplifier. This makes it suitable for applications requiring low noise and high sensitivity, such as receivers and transceivers.
Trust Checks
Expert Contribution
System Verified
Community Approved
RBP-263+ Overview

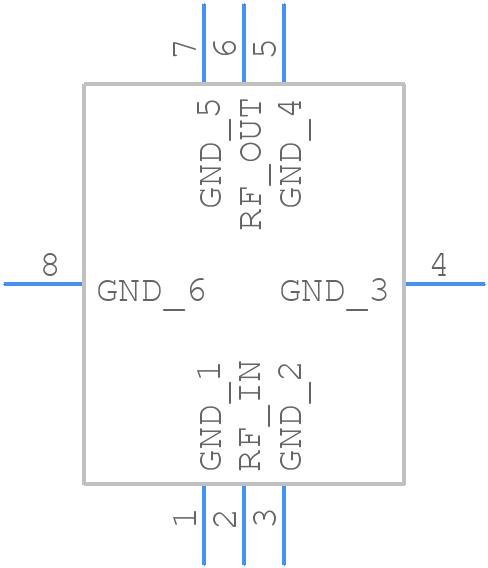

Use the download button to access the RBP-263+ schematic symbol, PCB footprint, and 3D model.
