RBP-440+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download RBP-440+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

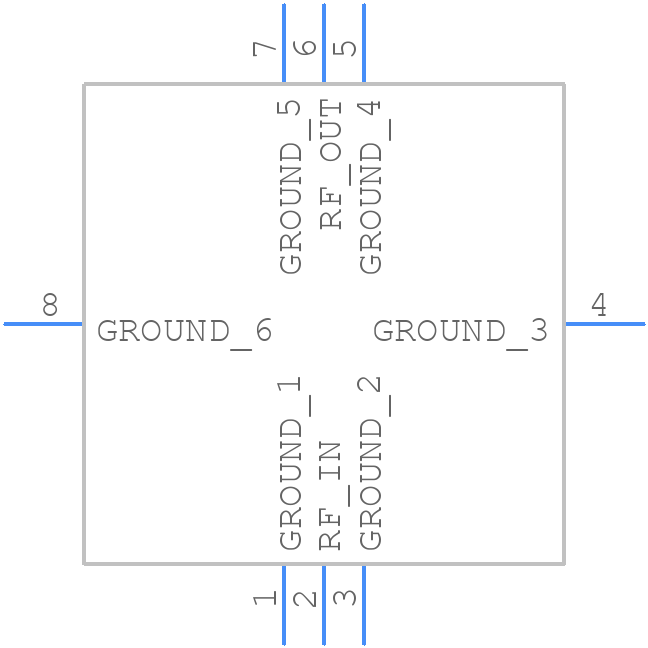

RBP-440+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RBP-440+ - Mini-Circuits PCB footprint - Other - Other - GP731 _2022
click to zoom
3D Models
RBP-440+ - Mini-Circuits - 3D model - Other - GP731 _2022
click to zoom

RBP-440+ Details

  • Manufacturer Part Number:

    RBP-440+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.49

  • Attenuation Frequency-Max:

    850 MHz

  • Attenuation Frequency-Min:

    650 MHz

  • Attenuation@Freq-Max:

    30 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    440 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    2

  • Width:

    8.89 mm

RBP-440+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip topology for the RF traces. A via-stitched ground plane around the device is also recommended to reduce radiation and improve isolation.
  • The biasing circuit should be designed to provide a stable voltage supply to the device, with a low impedance path to ground. A resistor-capacitor (RC) filter can be used to decouple the bias voltage from the RF signal, and a ferrite bead can be added to filter out high-frequency noise.
  • The RBP-440+ can handle up to 1W of input power, but it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of damage.
  • Common issues with the RBP-440+ can be troubleshooted by checking the PCB layout and assembly, ensuring proper biasing and power supply, and verifying the input and output impedance matching. A spectrum analyzer or network analyzer can be used to measure the device's performance and identify the root cause of the issue.
  • The RBP-440+ is a commercial-grade device and may not meet the requirements for high-reliability or space applications. Mini-Circuits offers other products that are specifically designed and qualified for these applications, such as the RBP-440S+ or the RBP-440M+.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RBP-440+ Overview

Use the download button to access the RBP-440+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RBP-4, or try a keyword search, such as General Purpose Passive Filters
