Part Image

RBP-75+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download RBP-75+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

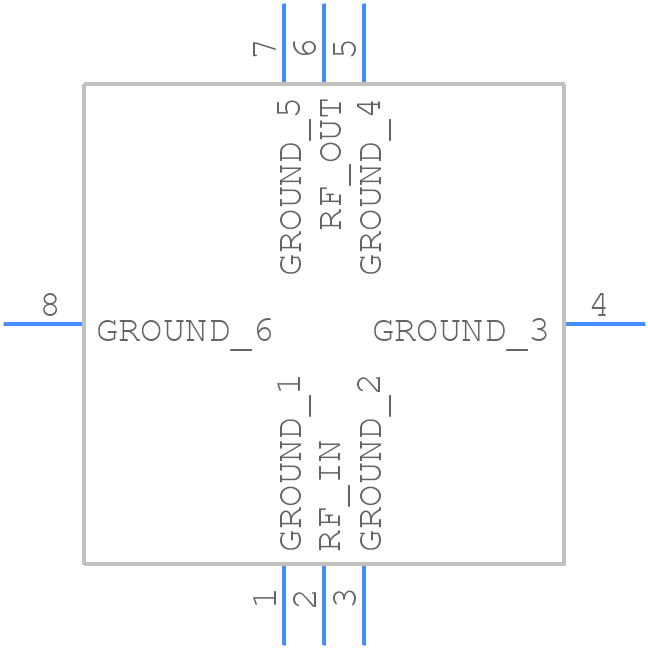

Symbol
RBP-75+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RBP-75+ - Mini-Circuits PCB footprint - Other - Other - RBP-75+-1
click to zoom
3D Models
RBP-75+ - Mini-Circuits - 3D model - Other - RBP-75+-1
click to zoom

RBP-75+ Details

  • Manufacturer Part Number:

    RBP-75+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Attenuation Frequency-Max:

    2000 MHz

  • Attenuation Frequency-Min:

    37 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.1 W

  • Center or Cutoff Frequency (fo/fc):

    75 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    4 dB

  • JESD-609 Code:

    e4

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR:

    1.3

  • Width:

    8.89 mm

RBP-75+ Frequently Asked Questions (FAQs)

  • The RBP-75+ can handle up to +20 dBm of input power without damage, but it's recommended to operate at +15 dBm or less for optimal performance.
  • The RBP-75+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system to 50 ohms.
  • The RBP-75+ operates from -40°C to +85°C, but optimal performance is achieved between 0°C to 40°C.
  • Yes, the RBP-75+ is designed for high-reliability applications and is available in a compact, ruggedized package. However, it's essential to consult with Mini-Circuits' application engineers to ensure the device meets your specific requirements.
  • To troubleshoot issues, check the input power level, impedance matching, and operating temperature. Also, ensure that the device is properly soldered and connected. If issues persist, consult Mini-Circuits' application notes and technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RBP-75+ Overview

Use the download button to access the RBP-75+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RBP-7, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
