RC1V-CH-D5 - Idec

RC1V-CH-D5 Details

• Manufacturer Part Number:

  RC1V-CH-D5

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.75

• Manufacturer:

  IDEC Corporation

• YTEOL:

  7

• Body Breadth:

  12.7 mm

• Body Height:

  15.7 mm

• Body Length or Diameter:

  29 mm

• Coil Current(DC)-Max:

  0.081 A

• Coil Operate Voltage(DC):

  3.5 V

• Coil Power:

  400 mW

• Coil Release Voltage(DC):

  0.5 V

• Coil Resistance:

  62 Ω

• Coil Voltage(DC)-Max:

  12.3 V

• Coil Voltage-Nom:

  5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  4000VA@440VAC

• Contact (AC) Max Rating R Load:

  16A@440VAC

• Contact Current(AC)-Max:

  16 A

• Contact Current(DC)-Max:

  16 A

• Contact (DC) Max Power Rating R Load:

  384W@300VDC

• Contact (DC) Max Rating R Load:

  16A@300VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  440 V

• Contact Voltage(DC)-Max:

  300 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

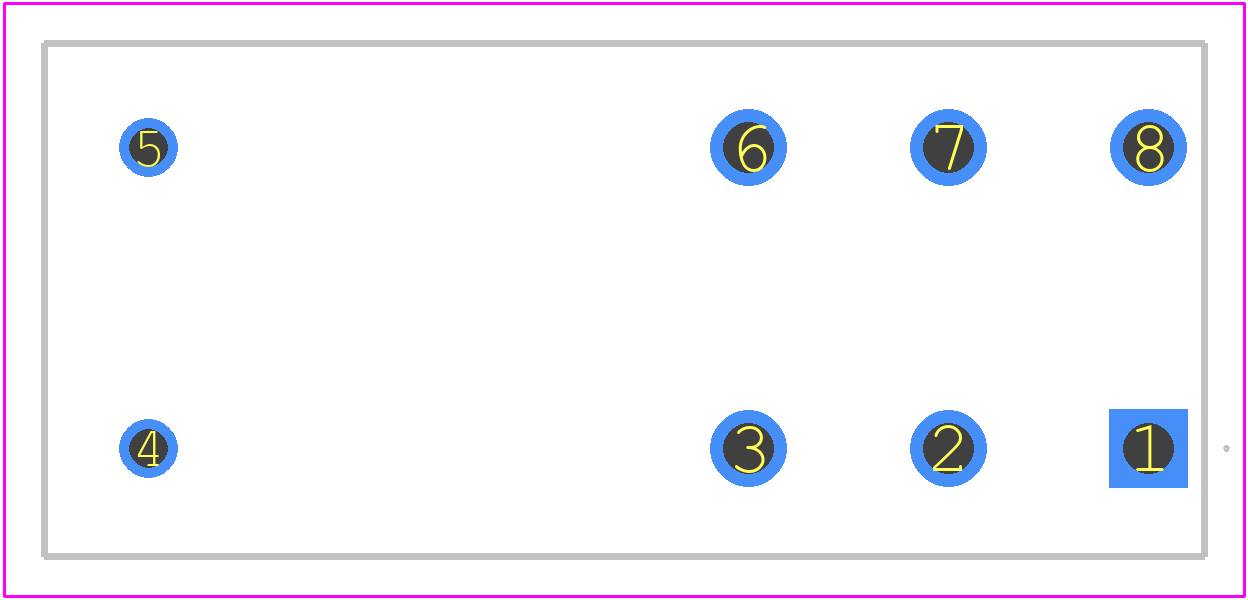

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

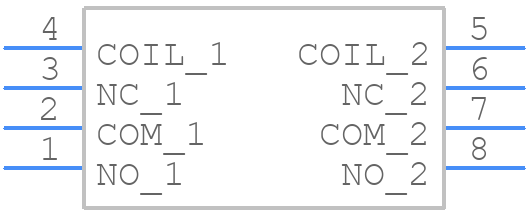

• Number of Terminals:

  8

• Operate Time:

  15 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  29mm x 12.7mm x 15.7mm

• Reference Standard:

  CE; CQC; CUL; UKCA; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Sealing:

  RT2

• Surface Mount:

  NO

• Terminal Length:

  0.0033020066040132085 inch

• Termination Type:

  SOLDER
