RC2004A-LLH-JSV - RAYSTAR

Description: Display: LCD; alphanumeric; VA Negative; 20x4; 98x60x13.6mm; LED

Download RC2004A-LLH-JSV Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this RC2004A-LLH-JSV model

Email notifications will be applied after download.

Send part feedback

Symbol

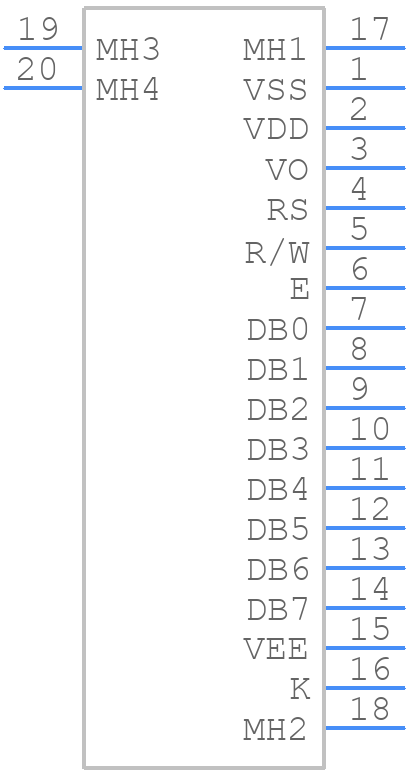

RC2004A-LLH-JSV - RAYSTAR - PCB symbol

PCB Footprints

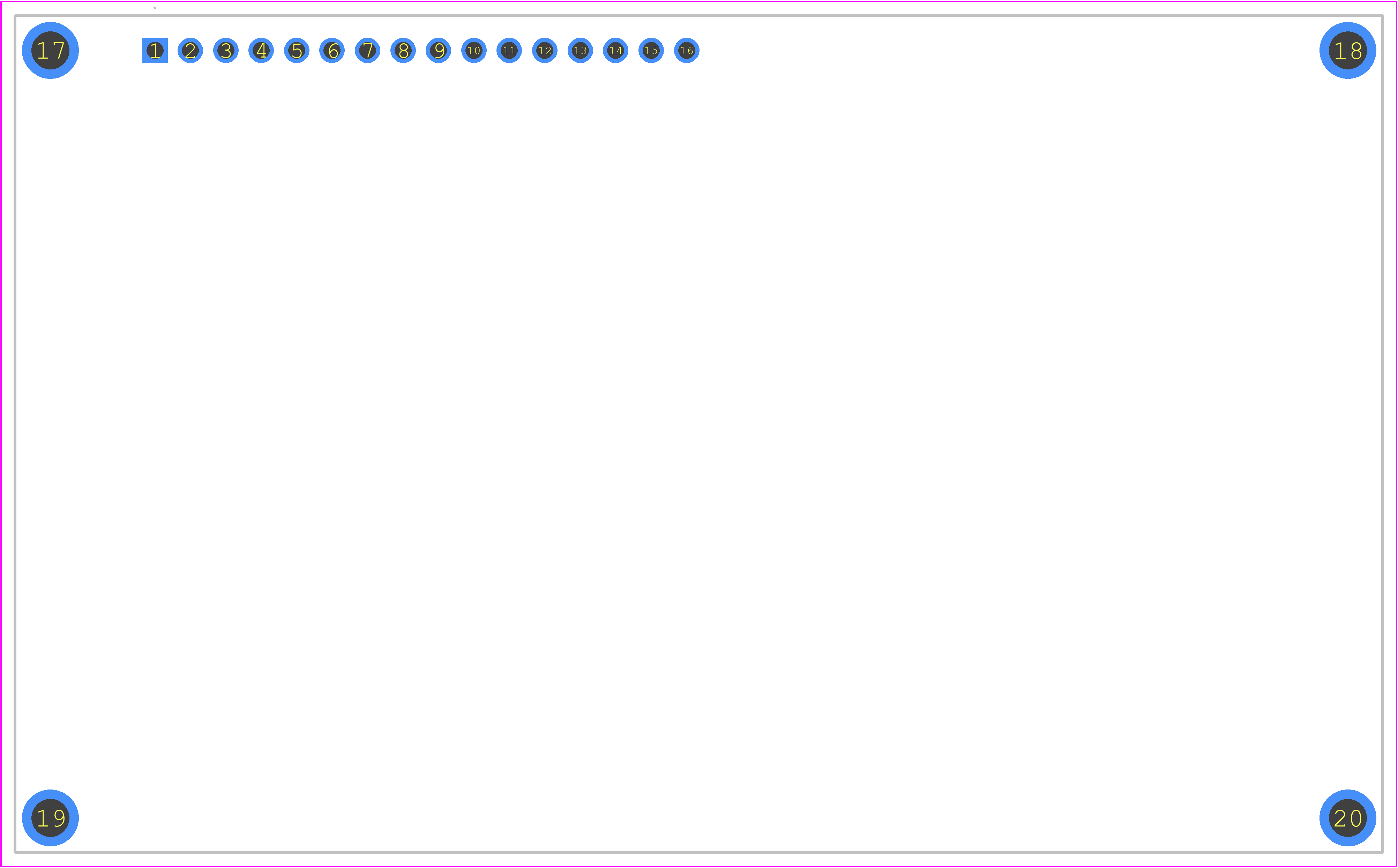

RC2004A-LLH-JSV - RAYSTAR PCB footprint - Other - Other - 98.0 x 60.0 x 13.6mm

3D Models

RC2004A-LLH-JSV - RAYSTAR - 3D model - Other - 98.0 x 60.0 x 13.6mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for RC2004A-LLH-JSV
Part Number RC2004A-LLH-JSV
Manufacturer RAYSTAR
Pin Count 20
Part Category Display
Package Category Other
Footprint Name Other - 98.0 x 60.0 x 13.6mm
Released Date Mar 15, 2025
Last Modified Date Mar 15, 2025 11:33 AM UTC
Pinout / Pin List Click Here (Member Only)
