RC21008AQ00GL2#BD0 - Renesas Electronics

Description: The RC21xxxA (RC21012A and RC21008A) is a member of Renesas's VersaClock® 7 programmable clock generator family. It is intended for high-performance compute, data-communications, and industrial applications, designed to be placed immediately adjacent to a PHY, switch, ASIC or FPGA that requires several reference clocks with jitter performance 150fs typical RMS.Up to 27 configurations reusable across multiple designs may be stored in on-chip One-Time Programmable (OTP) memory or external I2C EEPROM. Redundan

Download RC21008AQ00GL2#BD0 Model

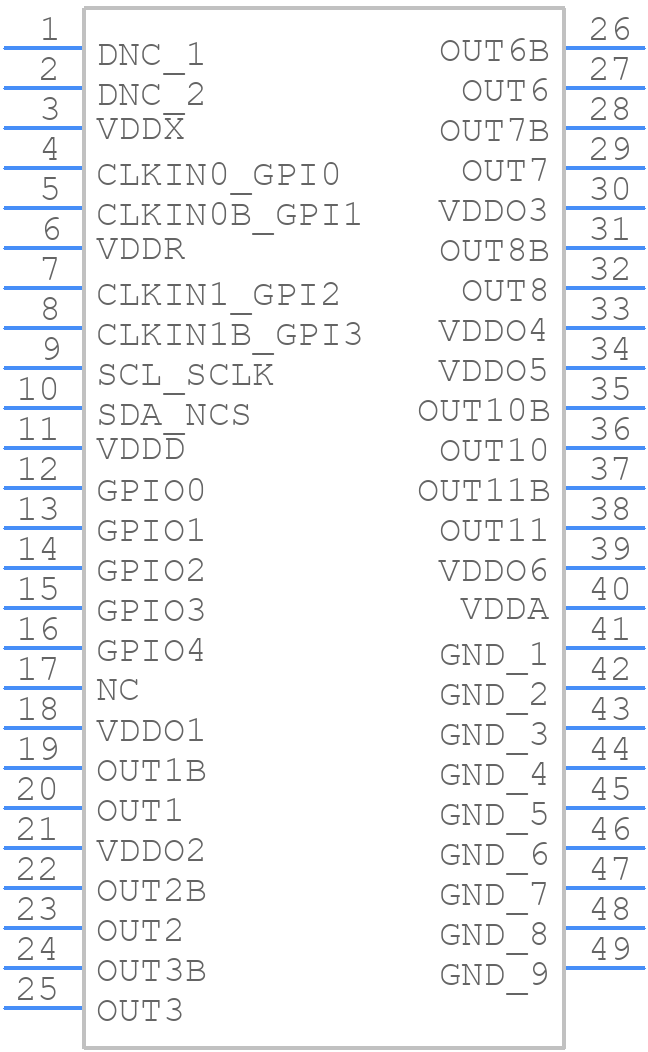

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RC21008AQ00GL2#BD0 - Renesas Electronics PCB footprint - Other - Other - LGA 5.00x5.00x1.70 mm 0.40mm Pitch
click to zoom
3D Models
RC21008AQ00GL2#BD0 - Renesas Electronics  - 3D model - Other - LGA 5.00x5.00x1.70 mm 0.40mm Pitch
click to zoom

RC21008AQ00GL2#BD0 Details

  • Manufacturer Part Number:

    RC21008AQ00GL2#BD0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-XBGA-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    650 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA40,10X10,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    650 MHz

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    54 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIE

RC21008AQ00GL2#BD0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the RC21008AQ00GL2#BD0 is -40°C to 125°C.
  • The RC21008AQ00GL2#BD0 has an internal POR and BOR circuit. The POR is triggered when the power supply voltage rises above 1.8V, and the BOR is triggered when the power supply voltage falls below 1.7V. You can use external resistors and capacitors to adjust the POR and BOR thresholds if needed.
  • The maximum clock frequency supported by the RC21008AQ00GL2#BD0 is 32 MHz.
  • To configure the RC21008AQ00GL2#BD0 for low-power operation, you can use the power-down mode, idle mode, or stop mode. You can also adjust the clock frequency, disable unnecessary peripherals, and use the built-in low-power modes to reduce power consumption.
  • The maximum current consumption of the RC21008AQ00GL2#BD0 is approximately 15mA at 3.3V and 32MHz clock frequency.
