RC2512JK-7W15RL - Yageo Group

Description: YAGEO - RC2512JK-7W15RL - SMD Chip Resistor, 15 ohm, ± 5%, 2 W, 2512 [6432 Metric], Thick Film, General Purpose

Download RC2512JK-7W15RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RC2512JK-7W15RL - Yageo Group - PCB symbol
click to zoom
PCB Footprints

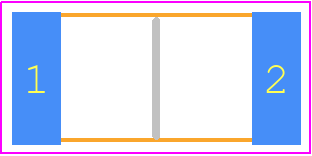

RC2512JK-7W15RL - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - 2512 (6432 Metric)_2023-1
click to zoom
3D Models
RC2512JK-7W15RL - Yageo Group - 3D model - Resistor Chip - 2512 (6432 Metric)_2023-1
click to zoom

RC2512JK-7W15RL Details

  • Manufacturer Part Number:

    RC2512JK-7W15RL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    10

  • Additional Feature:

    LASER TRIMMABLE

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.35 mm

  • Package Style:

    SMT

  • Package Width:

    3.1 mm

  • Packing Method:

    TR, EMBOSSED PLASTIC, 7 INCH

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    15 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    200 V

RC2512JK-7W15RL Frequently Asked Questions (FAQs)

  • The thermal resistance of the RC2512JK-7W15RL is typically around 250°C/W, but it's recommended to consult the manufacturer's documentation or contact their support for the most up-to-date and accurate information.
  • The RC2512JK-7W15RL is a general-purpose resistor and may not be suitable for high-frequency applications. For high-frequency applications, it's recommended to use specialized resistors designed for high-frequency use, such as those with a lower inductance and capacitance.
  • The RC2512JK-7W15RL has a maximum operating temperature of 155°C, but it's recommended to derate the power rating at higher temperatures. Consult the manufacturer's documentation for specific derating guidelines.
  • Yes, the RC2512JK-7W15RL is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended land pattern for the RC2512JK-7W15RL can be found in the manufacturer's documentation or on their website. It's essential to follow the recommended land pattern to ensure reliable assembly and prevent damage to the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RC2512JK-7W15RL Overview

Use the download button to access the RC2512JK-7W15RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RC251, or try a keyword search, such as Metal Glaze/Thick Film Resistors
