RCBT-63+ footprint, schematic symbol and 3D model by Mini-Circuits

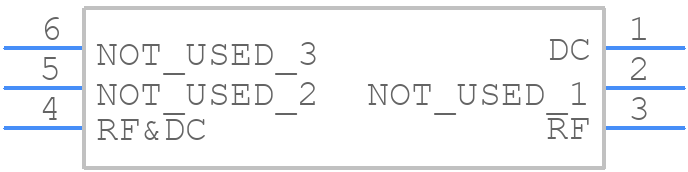

Symbol

click to zoom

PCB Footprints

RCBT-63+ - Mini-Circuits PCB footprint - Other - Other - TT1224-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RCBT-63+
Part Number RCBT-63+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TT1224-2
Released Date Jun 23, 2022
Last Modified Date Mar 8, 2023 1:05 PM UTC
Pinout / Pin List Click Here (Member Only)

RCBT-63+ Details

Manufacturer Part Number:
RCBT-63+
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Date Of Intro:
2018-08-08
Manufacturer:
Mini-Circuits
Additional Feature:
TR, 7 INCH: 200
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
DC Voltage-Max:
25 V
Insertion Loss-Max:
2 dB
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Max:
6000 MHz
Operating Frequency-Min:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
RF/Microwave Device Type:
MONITOR TEE DC BLOCK
Screening Level:
MIL-STD-202
Surface Mount:
YES
VSWR-Max:
1.5
