RCEC71H226MWK1H03B - Murata Electronics

Description: Capacitor L=5.5mm W=7.5mm T=4.0mm, 22 µF, 50 V, ± 20%, Radial Leaded, X7S, 5 mm

Download RCEC71H226MWK1H03B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RCEC71H226MWK1H03B - Murata Electronics - PCB symbol
click to zoom

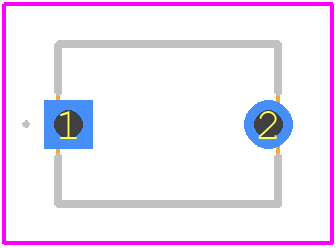

PCB Footprints
RCEC71H226MWK1H03B - Murata Electronics PCB footprint - Other - Other - RCEC71H226MWK1H03B
click to zoom
3D Models
RCEC71H226MWK1H03B - Murata Electronics - 3D model - Other - RCEC71H226MWK1H03B
click to zoom

RCEC71H226MWK1H03B Details

  • Manufacturer Part Number:

    RCEC71H226MWK1H03B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    22 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    7.5 mm

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    null

  • Packing Method:

    BULK

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7S

  • Temperature Coefficient:

    22% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    4 mm

RCEC71H226MWK1H03B Frequently Asked Questions (FAQs)

  • The recommended land pattern for the RCEC71H226MWK1H03B capacitor is a rectangular pad with a size of 3.2mm x 1.6mm, with a solder mask clearance of 0.2mm.
  • Handle the capacitor by the body, avoiding touching the terminals to prevent damage from electrostatic discharge. Use an anti-static wrist strap or mat during assembly.
  • The maximum voltage derating for the RCEC71H226MWK1H03B capacitor is 80% of the rated voltage, which is 16.8V for this specific part.
  • The RCEC71H226MWK1H03B capacitor is rated for operation up to 125°C. However, it's recommended to derate the voltage and consider the capacitor's temperature coefficient when operating in high-temperature environments.
  • Store the RCEC71H226MWK1H03B capacitor in a cool, dry place, away from direct sunlight and moisture. Avoid storing the capacitor in a location with high humidity or extreme temperatures.
