RCEC72A475MWK1H03B - Murata Electronics

Description: MURATA RCEC72A475MWK1H03B Multilayer Ceramic Capacitor, 4.7 µF, 100 V, ± 20%, PC Pin, X7S, 5 mm

Download RCEC72A475MWK1H03B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RCEC72A475MWK1H03B - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

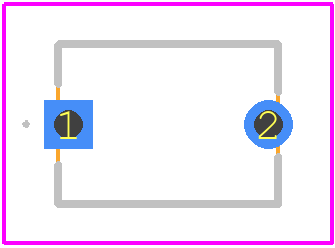

RCEC72A475MWK1H03B - Murata Electronics PCB footprint - Other - Other - RCEC72A475MWK1H03B
click to zoom
3D Models
RCEC72A475MWK1H03B - Murata Electronics - 3D model - Other - RCEC72A475MWK1H03B
click to zoom

RCEC72A475MWK1H03B Details

  • Manufacturer Part Number:

    RCEC72A475MWK1H03B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    7.5 mm

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    null

  • Packing Method:

    BULK

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7S

  • Temperature Coefficient:

    22% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    4 mm

RCEC72A475MWK1H03B Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.2mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between the pad and the solder mask.
  • Yes, the RCEC72A475MWK1H03B is designed to withstand vibrations up to 30G (IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
  • The RCEC72A475MWK1H03B is rated for operation up to 125°C, with a derating of 1.25% per °C above 85°C. It's essential to consider the temperature coefficient and derating when designing for high-temperature applications.
  • Yes, the RCEC72A475MWK1H03B is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile to ensure reliable assembly.
  • The ESR of the RCEC72A475MWK1H03B is approximately 0.015Ω at 100kHz, which is relatively low and suitable for high-frequency applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RCEC72A475MWK1H03B Overview

Use the download button to access the RCEC72A475MWK1H03B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCEC7, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
