RCJ-017 Frequently Asked Questions (FAQs)

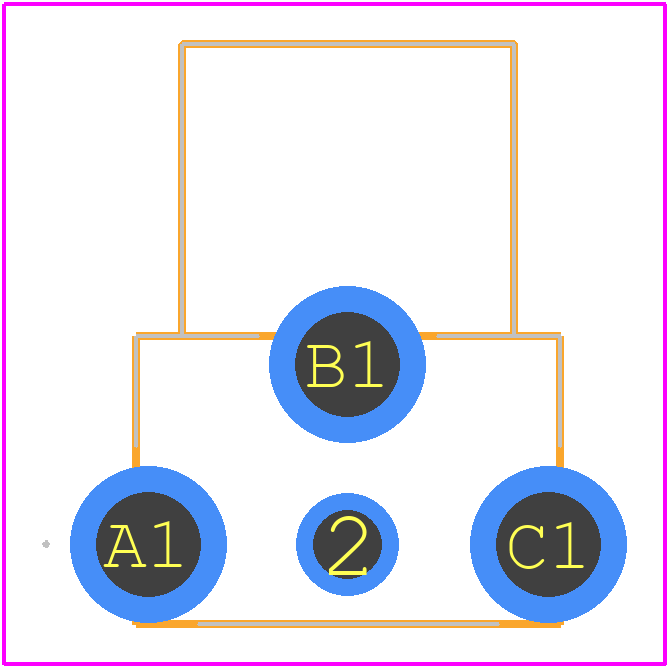

• What is the recommended PCB layout and land pattern for the RCJ-017?
  CUI Devices provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize thermal resistance.
• How do I handle the thermal management of the RCJ-017?
  Proper thermal management is crucial for the RCJ-017. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. The device's thermal pad should be connected to a solid ground plane to dissipate heat efficiently.
• What is the maximum operating temperature range for the RCJ-017?
  While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the RCJ-017 within a temperature range of -20°C to 100°C for optimal performance.
• Can I use the RCJ-017 in a high-vibration environment?
  The RCJ-017 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to take additional measures such as using a vibration-dampening material or a more secure mounting method to prevent damage to the device.
• How do I ensure the RCJ-017 meets my specific application's safety and regulatory requirements?
  CUI Devices provides safety and regulatory information in their documentation, but it's essential to consult with a qualified engineer or regulatory expert to ensure the RCJ-017 meets your specific application's requirements, such as UL, CE, or RoHS compliance.
