A good PCB layout for the RCLAMP0503F.TCT involves placing the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. A larger capacitor value can provide better ESD protection but may affect the signal integrity.
The RCLAMP0503F.TCT is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider the specific application's temperature requirements.
Yes, the RCLAMP0503F.TCT is suitable for protecting high-speed data lines, such as USB, HDMI, and Ethernet. However, it's essential to consider the signal integrity and ensure that the device does not affect the signal quality or introduce significant signal attenuation.
The RCLAMP0503F.TCT is designed to handle surge currents up to 30A and ESD events up to ±30kV. The device's internal circuitry is designed to clamp the voltage and absorb the energy of the surge or ESD event, protecting the downstream circuitry.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP0503F.TCT Overview

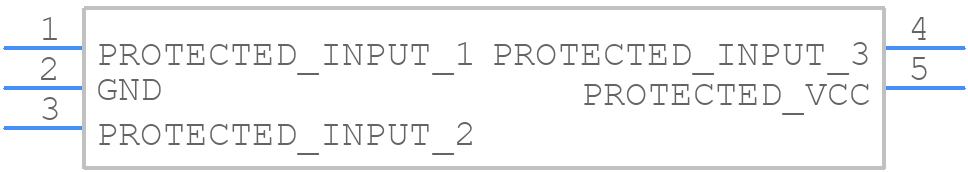

Use the download button to access the RCLAMP0503F.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM,
or try a keyword search, such as Transient Suppressors
