A good PCB layout for the RCLAMP0504M.TBT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
The value of the external capacitors depends on the specific application and the desired level of ESD protection. A general rule of thumb is to use capacitors with a value of 1-10nF, but the optimal value may vary depending on the specific use case. Consult the datasheet and application notes for more information.
The RCLAMP0504M.TBT is rated for operation from -40°C to 125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
Yes, the RCLAMP0504M.TBT is designed to protect high-speed signals up to 4GHz, making it suitable for use in high-speed data transmission applications such as USB, HDMI, and Ethernet.
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Avoid applying excessive heat or force during the soldering process, and ensure that the device is properly aligned with the PCB pads.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP0504M.TBT Overview

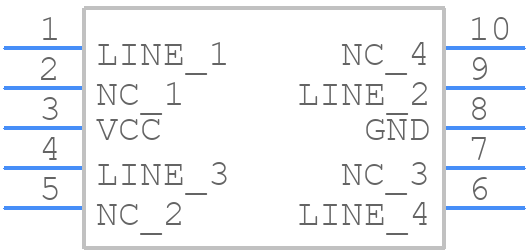

Use the download button to access the RCLAMP0504M.TBT schematic symbol, PCB footprint, and 3D model.
