2.50 X 1.0 MM, 0.58 MM HEIGHT, ROHS COMPLIANT, CASE SLP2510P8, 10 PIN
Pin Count:
10
Manufacturer Package Code:
CASE SLP2510P8
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Manufacturer:
Semtech Corporation
YTEOL:
0
Additional Feature:
LOW CAPACITANCE
Breakdown Voltage-Min:
6 V
Clamping Voltage-Max:
15 V
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-PDSO-N10
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
150 W
Number of Elements:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Qualification Status:
Not Qualified
Reference Standard:
IEC-61000-4-2, 4-4, 4-5
Rep Pk Reverse Voltage-Max:
5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
RCLAMP0524P.TCT Frequently Asked Questions (FAQs)
A good PCB layout for the RCLAMP0524P.TCT involves keeping the device close to the protected circuit, using short traces, and minimizing the distance between the device and the protected circuit. Additionally, a solid ground plane and a low-impedance path to the ground are recommended.
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. A larger capacitor value provides better ESD protection but increases the circuit's capacitance and may affect the signal integrity.
The RCLAMP0524P.TCT is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure that the device operates within the recommended temperature range for optimal performance and reliability.
Yes, the RCLAMP0524P.TCT is suitable for ESD protection in high-speed data lines. The device's low capacitance (0.5pF) and low clamping voltage (6V) make it suitable for protecting high-speed data lines up to 10Gbps. However, it's essential to ensure that the device is properly matched to the signal line impedance to minimize signal distortion and reflections.
To ensure proper soldering of the RCLAMP0524P.TCT, follow the recommended soldering profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven or a hot air gun to solder the device. Avoid overheating the device or the PCB, as this can cause damage or degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP0524P.TCT Overview

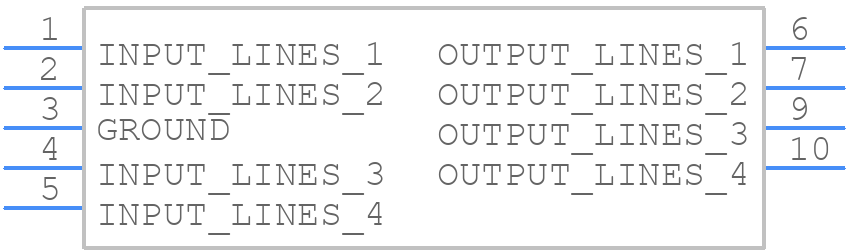

Use the download button to access the RCLAMP0524P.TCT schematic symbol, PCB footprint, and 3D model.
