RCLAMP0524T.TCT - SEMTECH

Description: ESD Suppressors / TVS Diodes RAILCLAMP 4-LINE+GND 5V SLP

Download RCLAMP0524T.TCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

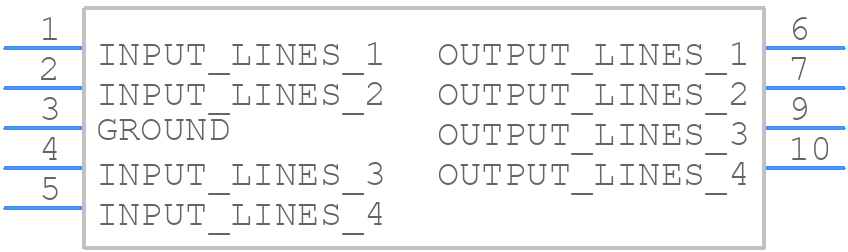

Symbol
RCLAMP0524T.TCT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
RCLAMP0524T.TCT - SEMTECH PCB footprint - Other - Other - 10-XFDFN
click to zoom

RCLAMP0524T.TCT Details

  • Manufacturer Part Number:

    RCLAMP0524T.TCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    2.50 X 1 MM, 0.40 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, SLP2510P8T, 10 PIN

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    0

  • Breakdown Voltage-Min:

    6 V

  • Breakdown Voltage-Nom:

    6 V

  • Clamping Voltage-Max:

    15 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    150 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

RCLAMP0524T.TCT Frequently Asked Questions (FAQs)

  • A good PCB layout for the RCLAMP0524T.TCT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
  • The value of the external capacitors (C1 and C2) depends on the specific application and the desired level of ESD protection. A good starting point is to use capacitors with a value of 1-10nF, and then adjust based on the specific requirements of the application.
  • The RCLAMP0524T.TCT is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the RCLAMP0524T.TCT is designed for use in high-speed data lines and can provide effective ESD protection up to 10Gbps.
  • The RCLAMP0524T.TCT is designed to handle surge pulses up to 10A, 8/20μs, and can provide effective protection against surge pulses and other types of overvoltage events.
