3 X 2 MM, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SLP3020N10, 10 PIN
Pin Count:
10
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
4 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
6.93
Breakdown Voltage-Min:
6 V
Breakdown Voltage-Nom:
6 V
Clamping Voltage-Max:
15 V
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-PDSO-N10
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
500 W
Number of Elements:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Rep Pk Reverse Voltage-Max:
5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
RCLAMP0534N.TCT Frequently Asked Questions (FAQs)
A good PCB layout for RCLAMP0534N.TCT involves keeping the device close to the protected circuit, using short traces, and minimizing the distance between the device and the protected circuit. A ground plane under the device can also help to reduce noise and improve performance.
To choose the correct RCLAMP0534N.TCT, consider the voltage and current requirements of your application, as well as the type of protection needed (e.g., ESD, surge, or overvoltage). Consult the datasheet and application notes for guidance on selecting the appropriate device.
The maximum operating temperature range for RCLAMP0534N.TCT is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
Yes, RCLAMP0534N.TCT is designed to work with both 3.3V and 5V systems. However, ensure that the device is properly biased and that the voltage rating is not exceeded.
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 3.3V or 5V) and ensure that the voltage is within the recommended operating range. Consult the datasheet for specific biasing requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP0534N.TCT Overview

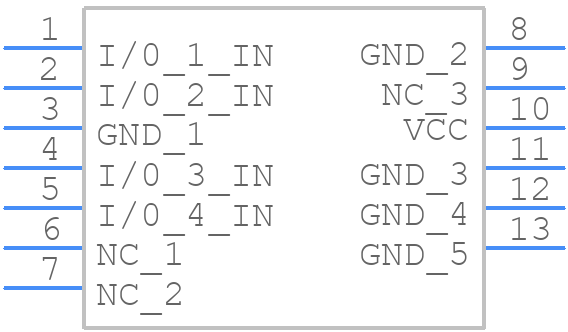

Use the download button to access the RCLAMP0534N.TCT schematic symbol, PCB footprint, and 3D model.
