A good PCB layout for the RCLAMP2504P.TCT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. A larger capacitor value can provide better ESD protection but may affect the signal integrity.
The RCLAMP2504P.TCT is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider the specific application's temperature requirements.
Yes, the RCLAMP2504P.TCT is suitable for protecting high-speed data lines, such as USB, HDMI, and Ethernet. However, it's essential to consider the signal integrity and ensure that the device does not affect the signal quality or introduce significant latency.
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point compatible with the device's package. Avoid overheating the device, and use a soldering iron with a temperature control to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP2504P.TCT Overview

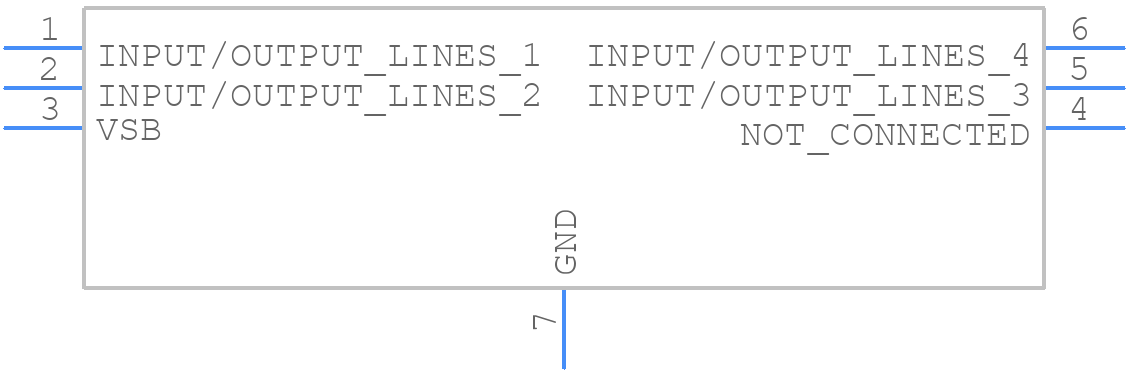

Use the download button to access the RCLAMP2504P.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM,
or try a keyword search, such as Transient Suppressors
