RCLAMP2574N.TCT - SEMTECH

Description: 20V Clamp 40A (8/20µs) Ipp Tvs Diode Surface Mount SLP3020N10

Download RCLAMP2574N.TCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

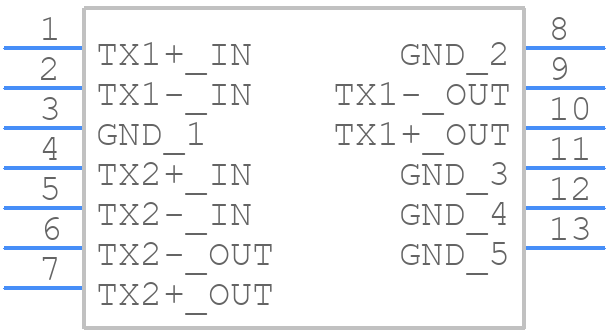

RCLAMP2574N.TCT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
RCLAMP2574N.TCT - SEMTECH PCB footprint - Other - Other - RCLAMP2574N.TCT-1
click to zoom
3D Models
RCLAMP2574N.TCT - SEMTECH - 3D model - Other - RCLAMP2574N.TCT-1
click to zoom

RCLAMP2574N.TCT Details

  • Manufacturer Part Number:

    RCLAMP2574N.TCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3.0 X 2.0 MM, 0.60 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SLP3020N10, 10 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    7

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Max:

    4.5 V

  • Clamping Voltage-Max:

    20 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1000 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Rep Pk Reverse Voltage-Max:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

RCLAMP2574N.TCT Frequently Asked Questions (FAQs)

  • The RCLAMP2574N.TCT can handle surge currents up to 30A, making it suitable for protecting high-speed data lines from electrostatic discharge (ESD) and other transient events.
  • The RCLAMP2574N.TCT uses a combination of low-capacitance diodes and a proprietary silicon avalanche diode (SAD) structure to clamp transient voltages and divert surge currents away from sensitive circuitry.
  • The RCLAMP2574N.TCT has a typical response time of <1ns, making it suitable for protecting high-speed data lines from fast-rising ESD events.
  • Yes, the RCLAMP2574N.TCT is designed to be compatible with high-speed data protocols such as USB, HDMI, and SATA, and can operate at data rates up to 10 Gbps.
  • The RCLAMP2574N.TCT has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, from consumer electronics to industrial and automotive systems.
