RCLAMP2594N.TCT footprint, schematic symbol and 3D model by SEMTECH

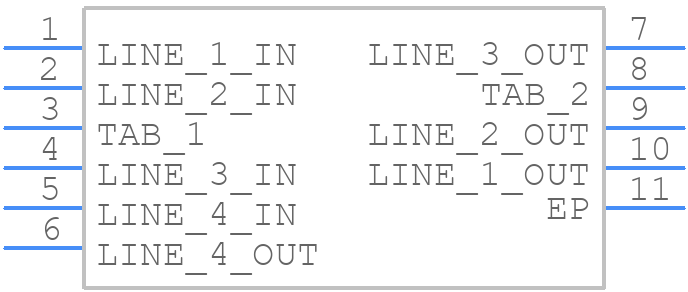

Symbol

click to zoom

PCB Footprints

RCLAMP2594N.TCT - SEMTECH PCB footprint - Other - Other - SLF3020P10T

click to zoom

3D Models

RCLAMP2594N.TCT - SEMTECH - 3D model - Other - SLF3020P10T

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RCLAMP2594N.TCT
Part Number RCLAMP2594N.TCT
Manufacturer SEMTECH
Pin Count 11
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SLF3020P10T
Released Date May 5, 2023
Last Modified Date Jul 14, 2025 4:55 AM UTC
Pinout / Pin List Click Here (Member Only)

RCLAMP2594N.TCT Details

Manufacturer Part Number:
RCLAMP2594N.TCT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
4 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
6.46
Additional Feature:
LOW CAPACITANCE
Breakdown Voltage-Max:
11.5 V
Breakdown Voltage-Min:
6.5 V
Breakdown Voltage-Nom:
9.5 V
Clamping Voltage-Max:
8.5 V
Configuration:
COMMON ANODE, 4 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-PDSO-N10
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
300 W
Number of Elements:
4
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Reference Standard:
IEC-61000-4-2,4-4,4-5
Rep Pk Reverse Voltage-Max:
5 V
Reverse Current-Max:
0.1 µA
Reverse Test Voltage:
5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Position:
DUAL

RCLAMP2594N.TCT Frequently Asked Questions (FAQs)

A good PCB layout for the RCLAMP2594N.TCT involves placing the device close to the protected circuit, using short and wide traces for the signal lines, and ensuring good grounding and shielding to minimize electromagnetic interference (EMI).
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF, with a voltage rating that matches the maximum voltage of the protected circuit.
The RCLAMP2594N.TCT is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
Yes, the RCLAMP2594N.TCT is designed to protect high-speed signals up to 10 Gbps, making it suitable for use in high-speed data transmission applications such as USB, HDMI, and Ethernet.
The RCLAMP2594N.TCT is designed to handle surge currents up to 30A, making it suitable for use in applications that require protection against electrical surges and spikes.

Trust Checks

Expert Contribution

System Verified

Community Approved

RCLAMP2594N.TCT Overview

Use the download button to access the RCLAMP2594N.TCT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM, or try a keyword search, such as Transient Suppressors
