RCLAMP3304N.TCT footprint, schematic symbol and 3D model by SEMTECH

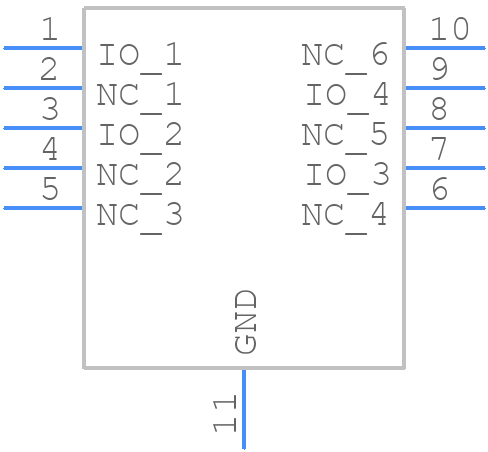

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RCLAMP3304N.TCT
Part Number RCLAMP3304N.TCT
Manufacturer SEMTECH
Pin Count 11
Part Category TVS Diode (Bi-directional)
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - SLP2626P10
Released Date Jul 1, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RCLAMP3304N.TCT Details

Manufacturer Part Number:
RCLAMP3304N.TCT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
2.60 X 2.60 MM, 0.60 MM HEIGHT, ROHS COMPLIANT PACKAGE-10
Pin Count:
10
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
13 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
3
Additional Feature:
LOW LEAKAGE CURRENT, LOW CAPACITANCE
Clamping Voltage-Max:
18 V
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
450 W
Number of Elements:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
3.3 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30

RCLAMP3304N.TCT Frequently Asked Questions (FAQs)

A good PCB layout for the RCLAMP3304N.TCT involves placing the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. A larger capacitor value can provide better ESD protection but may affect the signal integrity.
The RCLAMP3304N.TCT is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider the specific application requirements and environmental conditions.
Yes, the RCLAMP3304N.TCT is suitable for protecting high-speed data lines, such as USB, HDMI, and Ethernet. The device's low capacitance and high bandwidth make it suitable for high-speed applications.
The RCLAMP3304N.TCT is designed to handle surge currents up to 30A and ESD events up to ±30kV. The device's internal circuitry is designed to clamp the voltage and absorb the energy of the surge or ESD event, protecting the downstream circuitry.
