RCLAMP3324P.TCT - SEMTECH

Description: ESD Suppressor Diode Diode Array Uni-Dir 3.3V Automotive 8-Pin SGP EP T/R

Download RCLAMP3324P.TCT Model

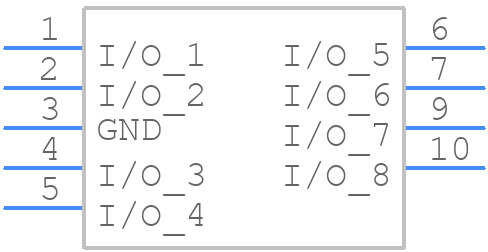

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RCLAMP3324P.TCT - SEMTECH PCB footprint - Other - Other - RCLAMP3324P.TCT-1
click to zoom
3D Models
RCLAMP3324P.TCT - SEMTECH  - 3D model - Other - RCLAMP3324P.TCT-1
click to zoom

RCLAMP3324P.TCT Details

  • Manufacturer Part Number:

    RCLAMP3324P.TCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2016-11-08

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.81

  • Additional Feature:

    LOW CAPACITANCE

  • Clamping Voltage-Max:

    4.5 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PBCC-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q100; IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

RCLAMP3324P.TCT Frequently Asked Questions (FAQs)

  • A good PCB layout for the RCLAMP3324P.TCT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
  • The choice of external resistors depends on the specific application and the desired clamping voltage. A general rule of thumb is to choose resistors that limit the current to the device to 1-2 mA. The datasheet provides a formula to calculate the resistor values based on the desired clamping voltage and the input voltage.
  • The RCLAMP3324P.TCT can handle surge currents up to 3A, 8/20μs waveform, as per the IEC 61000-4-5 standard. However, it's essential to ensure that the PCB layout and the external components can handle the surge current without compromising the device's performance.
  • Yes, the RCLAMP3324P.TCT is suitable for ESD protection in automotive applications. It meets the requirements of the IEC 61000-4-2 standard for ESD protection and can withstand the high-voltage transients and surges common in automotive systems.
  • During a POR condition, the RCLAMP3324P.TCT will clamp the voltage to a safe level, preventing damage to the protected circuit. The device will recover once the power supply voltage returns to a stable state.
