Part Image

RCLAMP3324P.TNT - SEMTECH

Description: ESD Suppressors / TVS Diodes Low Capacitance 4- Line ESD Protection

Download RCLAMP3324P.TNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

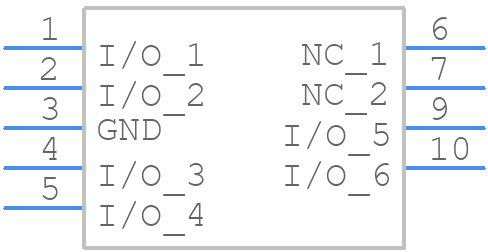

Symbol
RCLAMP3324P.TNT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
RCLAMP3324P.TNT - SEMTECH PCB footprint - Other - Other - RCLAMP3324P.TNT-3
click to zoom
3D Models
RCLAMP3324P.TNT - SEMTECH - 3D model - Other - RCLAMP3324P.TNT-3
click to zoom

RCLAMP3324P.TNT Details

  • Manufacturer Part Number:

    RCLAMP3324P.TNT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2016-11-08

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.81

  • Additional Feature:

    LOW CAPACITANCE

  • Clamping Voltage-Max:

    4.5 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PBCC-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q100; IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

RCLAMP3324P.TNT Frequently Asked Questions (FAQs)

  • A good PCB layout for the RCLAMP3324P.TNT involves placing the device close to the protected circuit, using short and wide traces for the signal lines, and ensuring good grounding and shielding to minimize electromagnetic interference (EMI).
  • The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF, with a voltage rating that matches or exceeds the maximum voltage of the protected circuit.
  • The RCLAMP3324P.TNT is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • Yes, the RCLAMP3324P.TNT is designed to protect high-speed signals up to 10 Gbps, making it suitable for use in high-speed data transmission applications such as USB, HDMI, and Ethernet.
  • The RCLAMP3324P.TNT is designed to handle surge currents up to 30A, making it suitable for use in applications that require protection against electrical surges and spikes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RCLAMP3324P.TNT Overview

Use the download button to access the RCLAMP3324P.TNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM, or try a keyword search, such as Transient Suppressors
