RCLAMP3328P.TNT - SEMTECH

Description: ESD Suppressor Diode Array Uni-Dir 3.3V 9-Pin SGP T/R

Download RCLAMP3328P.TNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

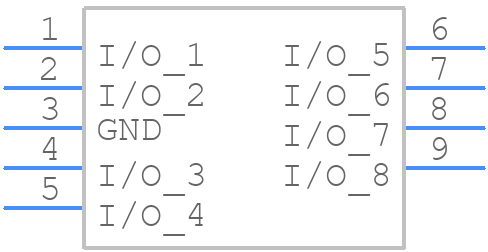

RCLAMP3328P.TNT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
RCLAMP3328P.TNT - SEMTECH PCB footprint - Other - Other - RCLAMP3328P.TNT-3
click to zoom
3D Models
RCLAMP3328P.TNT - SEMTECH - 3D model - Other - RCLAMP3328P.TNT-3
click to zoom

RCLAMP3328P.TNT Details

  • Manufacturer Part Number:

    RCLAMP3328P.TNT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.03

  • Clamping Voltage-Max:

    10.5 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-XBCC-N9

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    75 W

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM
