1.60 X 1.60 MM, 0.60 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SLP1616P6, 6 PIN
Pin Count:
6
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
13 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
6
Breakdown Voltage-Max:
10 V
Breakdown Voltage-Min:
6.5 V
Breakdown Voltage-Nom:
8 V
Clamping Voltage-Max:
30 V
Configuration:
COMMON ANODE, 2 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
S-PDSO-N6
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
100 W
Number of Elements:
2
Number of Terminals:
6
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Qualification Status:
Not Qualified
Reference Standard:
IEC-61000-4-2, 4-4
Rep Pk Reverse Voltage-Max:
5.5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
RCLAMP3654PATCT Frequently Asked Questions (FAQs)
A good PCB layout for the RCLAMP3654PATCT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
The value of the external capacitors (C1 and C2) depends on the specific application and the desired level of ESD protection. A general guideline is to use capacitors with a value between 1nF to 10nF, with a voltage rating that exceeds the maximum voltage of the protected circuit.
The RCLAMP3654PATCT is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
Yes, the RCLAMP3654PATCT is designed to provide ESD protection for high-speed data lines, such as USB, HDMI, and Ethernet. Its low capacitance and high surge capability make it well-suited for these applications.
The RCLAMP3654PATCT is designed to handle high surge currents, with a peak pulse current rating of 30A. It can absorb and dissipate surge energy, protecting the downstream circuitry from damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP3654PATCT Overview

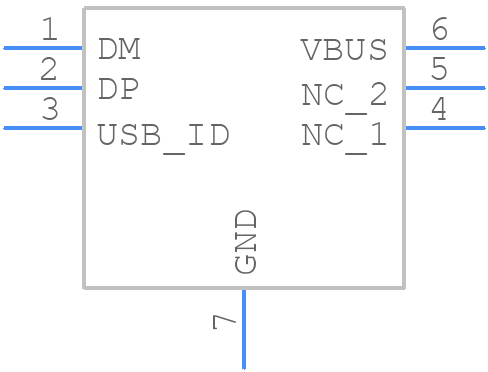

Use the download button to access the RCLAMP3654PATCT schematic symbol, PCB footprint, and 3D model.
