A good PCB layout for the RCLAMP7528T.TNT involves keeping the device close to the protected circuit, using short and wide traces, and minimizing the distance between the device and the protected circuit. Additionally, it's recommended to use a solid ground plane and to avoid routing signals under the device.
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. A larger capacitor value provides better ESD protection but increases the circuit's capacitance and may affect the signal integrity.
The RCLAMP7528T.TNT is rated for operation from -40°C to +125°C. However, it's recommended to derate the device's performance at extreme temperatures, and to ensure that the device is operated within the specified temperature range to maintain its ESD protection capabilities.
Yes, the RCLAMP7528T.TNT can be used to protect multiple data lines. However, it's essential to ensure that the device is properly connected to each data line and that the total capacitance of the protected lines does not exceed the device's maximum capacitance rating.
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point compatible with the device's package. Avoid overheating the device, and ensure that the solder joints are clean and free of oxidation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP7528T.TNT Overview

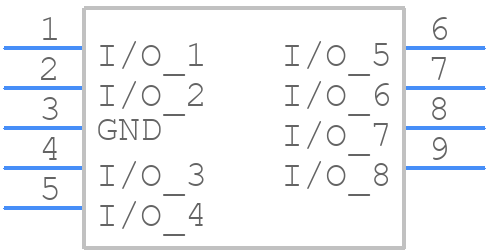

Use the download button to access the RCLAMP7528T.TNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM,
or try a keyword search, such as Transient Suppressors
