A good PCB layout for the RCLAMP7538P.TNT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. A larger capacitor value can provide better ESD protection but may affect the signal integrity.
The RCLAMP7538P.TNT is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider the specific application's temperature requirements.
Yes, the RCLAMP7538P.TNT is suitable for protecting high-speed data lines, such as USB, HDMI, and Ethernet. The device's low capacitance and high bandwidth make it suitable for high-speed applications.
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven or a hot air gun to solder the device. Avoid overheating the device or the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP7538P.TNT Overview

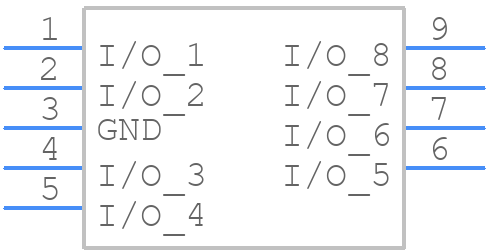

Use the download button to access the RCLAMP7538P.TNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM,
or try a keyword search, such as Transient Suppressors
