The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
The RD1113112R is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's recommended to perform additional testing and validation for specific high-vibration applications.
The RD1113112R is rated for indoor use only. For outdoor or harsh environmental applications, consider using a component with a higher IP rating or additional environmental protection measures.
Use a soft, dry brush to remove any debris or contaminants. Avoid using chemicals, solvents, or ultrasonic cleaning methods, as they may damage the component.
Yes, ensure a minimum of 1.5 mm clearance around the component to prevent electrical interference and heat buildup. Follow the recommended PCB layout guidelines in the datasheet for optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RD1113112R Overview

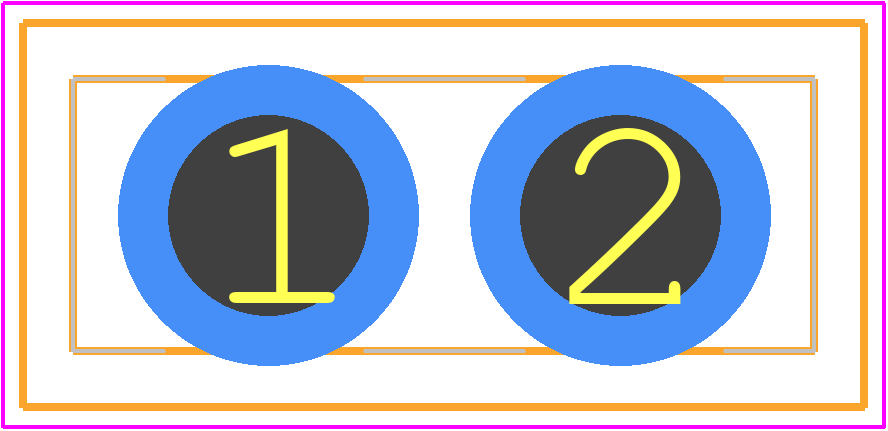

Use the download button to access the RD1113112R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RD111,
or try a keyword search, such as Rocker Switches
