Mitsubishi Electric recommends a 4-layer PCB with a thermal vias design to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad with a minimum size of 10mm x 10mm is recommended for the device.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, to keep the device temperature within the recommended operating range.
Mitsubishi Electric recommends soldering the RD15HVF1 using a reflow soldering process with a peak temperature of 260°C (500°F) for 10-30 seconds. The recommended soldering conditions are: preheating at 150°C (302°F) for 60-90 seconds, followed by a peak temperature of 260°C (500°F) for 10-30 seconds, and then cooling down to 150°C (302°F) within 60-90 seconds.
To protect the RD15HVF1 from ESD, it is recommended to handle the device in an ESD-controlled environment, use ESD-protective packaging, and ensure that all personnel handling the device wear ESD-protective wrist straps or clothing. Additionally, use ESD-protective devices, such as TVS diodes or ESD protection arrays, in the circuit design to protect the device from ESD events.
Mitsubishi Electric recommends storing the RD15HVF1 in a dry, clean environment with a temperature range of -40°C to 125°C (-40°F to 257°F) and humidity below 60%. The device should be stored in its original packaging or an equivalent ESD-protective packaging. Avoid exposing the device to direct sunlight, moisture, or contaminants.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RD15HVF1 Overview

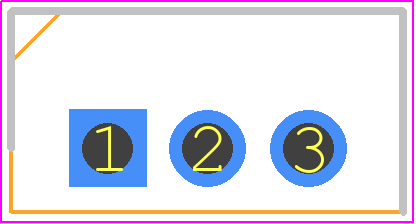

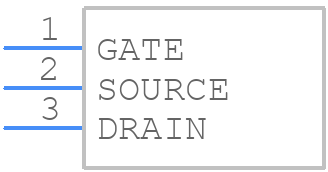

Use the download button to access the RD15HVF1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RD15H,
or try a keyword search, such as RF Power Field-Effect Transistors
