RD3L01BATTL1 - ROHM Semiconductor

Description: Pch -60V -10A Power MOSFET

Download RD3L01BATTL1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

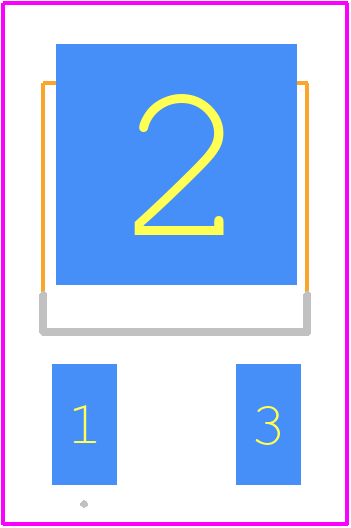

RD3L01BATTL1 - ROHM Semiconductor PCB footprint - Other - Other - TO-252 (DPAK)_Master
click to zoom
3D Models
RD3L01BATTL1 - ROHM Semiconductor  - 3D model - Other - TO-252 (DPAK)_Master
click to zoom

RD3L01BATTL1 Details

  • Manufacturer Part Number:

    RD3L01BATTL1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Date Of Intro:

    2020-11-05

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Avalanche Energy Rating (Eas):

    7.9 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.084 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    105 pF

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    26 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
