RD3P100SNFRATL - ROHM Semiconductor

Description: Automotive Nch 100V 10A Power MOSFET

Download RD3P100SNFRATL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RD3P100SNFRATL - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

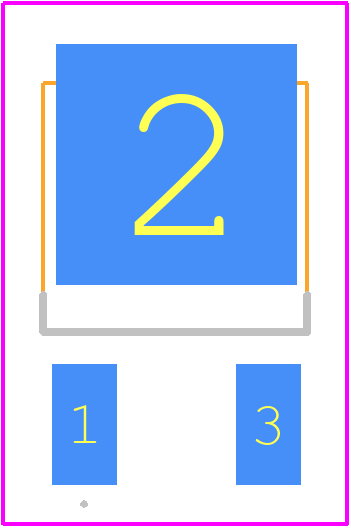

RD3P100SNFRATL - ROHM Semiconductor PCB footprint - Other - Other - TO-252 (DPAK)_Master
click to zoom
3D Models
RD3P100SNFRATL - ROHM Semiconductor - 3D model - Other - TO-252 (DPAK)_Master
click to zoom

RD3P100SNFRATL Details

  • Manufacturer Part Number:

    RD3P100SNFRATL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-04

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.147 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RD3P100SNFRATL Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm with multiple vias to the ground plane to ensure efficient heat dissipation. A minimum of 3mm clearance around the device is also recommended to prevent thermal interference.
  • To ensure stable operation, ROHM recommends a soft-start circuit or a ramp-up/ramp-down power supply to prevent inrush currents and voltage spikes. Additionally, a 10uF to 100uF decoupling capacitor should be placed close to the device to filter out noise and voltage transients.
  • While the datasheet specifies a recommended operating voltage range, ROHM recommends limiting the input voltage deviation to ±10% to ensure stable operation and prevent damage to the device.
  • ROHM recommends implementing ESD protection measures such as TVS diodes or ESD protection arrays at the input and output pins to prevent damage from electrostatic discharge. A minimum of 2kV HBM and 100V MM ESD protection is recommended.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, ROHM recommends operating the device within a range of -20°C to 125°C for long-term reliability and to prevent thermal degradation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RD3P100SNFRATL Overview

Use the download button to access the RD3P100SNFRATL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RD3P1, or try a keyword search, such as Power Field-Effect Transistors
