A good PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, and to use thermal vias to dissipate heat to the other side of the board. Additionally, keeping the thermal pad away from other components and traces can help reduce thermal resistance.
To ensure proper biasing, follow the recommended operating conditions in the datasheet, and make sure to provide a stable voltage supply to the device. Additionally, decoupling capacitors should be placed close to the device to reduce noise and ensure stable operation.
When handling the device, take precautions to prevent electrostatic discharge (ESD) damage by using an ESD wrist strap or mat, and avoid touching the pins or leads. Also, avoid bending or flexing the leads, and handle the device by the body or pins, not the leads.
To determine the optimal input and output capacitors, consider the operating frequency, output current, and ripple requirements of your application. A general rule of thumb is to use capacitors with a capacitance value of 10-22uF for input and output filtering. However, it's recommended to consult the datasheet and application notes for specific guidance.
Thermal design considerations for this device include providing a heat sink or thermal pad, ensuring good airflow, and keeping the device away from other heat sources. The device's thermal resistance (Rth) should also be considered when designing the thermal management system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RD3P130SPFRATL Overview

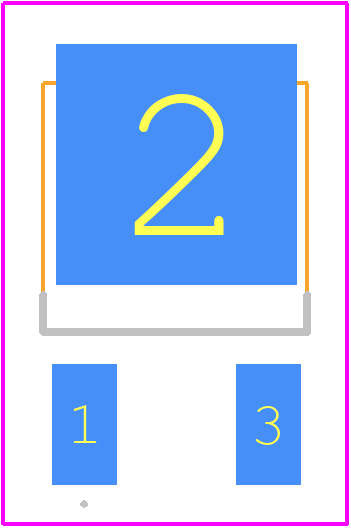

Use the download button to access the RD3P130SPFRATL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RD3P1,
or try a keyword search, such as Power Field-Effect Transistors
