- Part Number RDA1005LTR13
- Manufacturer Qorvo
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RDA1005LTR13
- Released Date Mar 19, 2019
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
RDA1005LTR13 Details
-
Manufacturer Part Number:
RDA1005LTR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
5.20 X 5.20 MM, ROHS COMPLIANT, LEADLESS, MCM, 32 PIN
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
15.5 dB
-
Input Power-Max (CW):
20 dBm
-
Mounting Feature:
SURFACE MOUNT
RDA1005LTR13 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
-
Use a voltage-controlled current source to bias the device. Set the gate voltage (Vg) to around 2.5V and the drain voltage (Vd) to around 5V. Adjust the bias current (Id) to achieve the desired output power and efficiency.
-
The maximum safe operating temperature for the RDA1005LTR13 is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
-
Use a thermal management system, such as a heat sink or a thermal pad, to keep the junction temperature below 125°C. Ensure good thermal conductivity between the device and the heat sink. Monitor the device temperature and reduce the power output if it exceeds the recommended temperature.
-
Use a pi-network or a T-network for input and output matching. The exact component values will depend on the specific application and frequency of operation. Consult the application note or a qualified RF engineer for guidance.
Trust Checks
Community Provided
System Verified
Community Approved
RDA1005LTR13 Overview

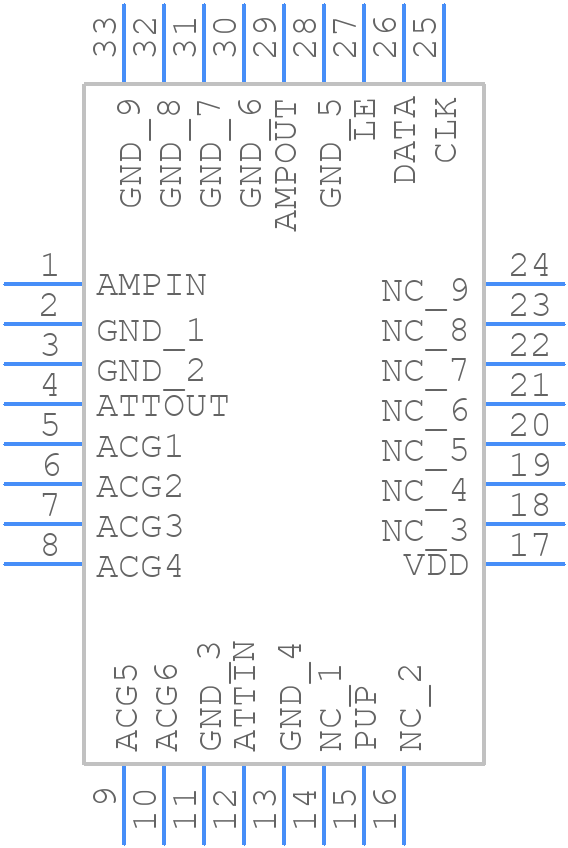

Use the download button to access the RDA1005LTR13 schematic symbol, PCB footprint, and 3D model.
