RDC-19222S-153Z - Data Device Corporation

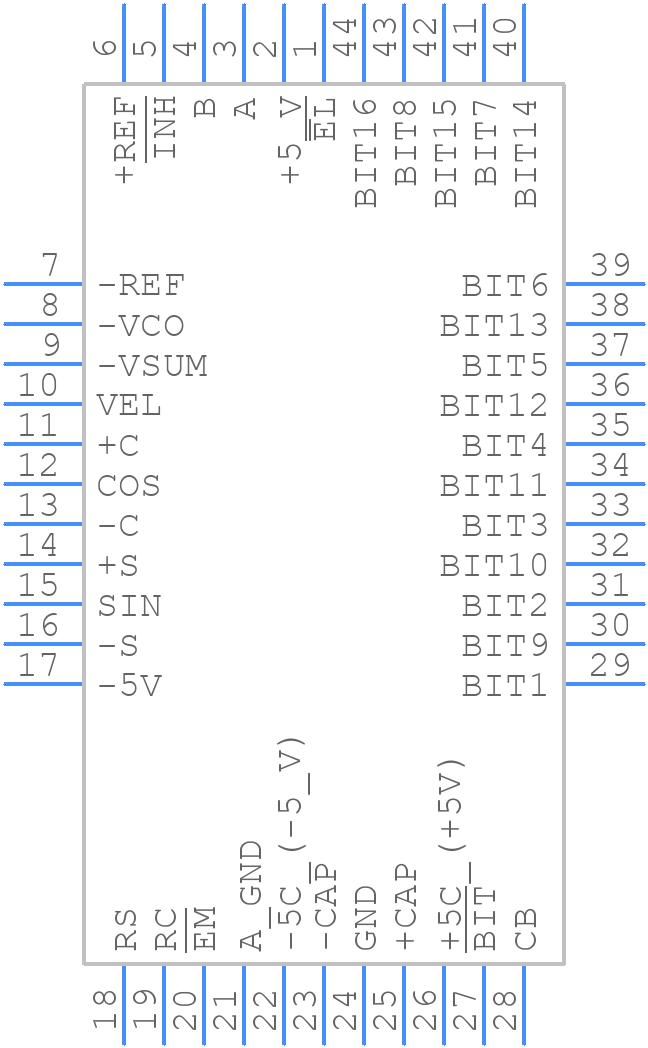

RDC-19222S-153Z Details

• Manufacturer Part Number:

  RDC-19222S-153Z

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  PACKAGE-44

• Pin Count:

  40

• Country Of Origin:

  Taiwan, USA

• HTS Code:

  8542.39.00.50

• Manufacturer:

  Data Device Corporation

• YTEOL:

  6.64

• Analog Input Voltage-Max:

  2.75 V

• Angular Accuracy-Max:

  2 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  S-CQCC-J44

• JESD-609 Code:

  e0

• Length:

  16.51 mm

• Negative Supply Voltage-Max:

  -5.25 V

• Negative Supply Voltage-Min:

  -4.75 V

• Negative Supply Voltage-Nom:

  -5 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

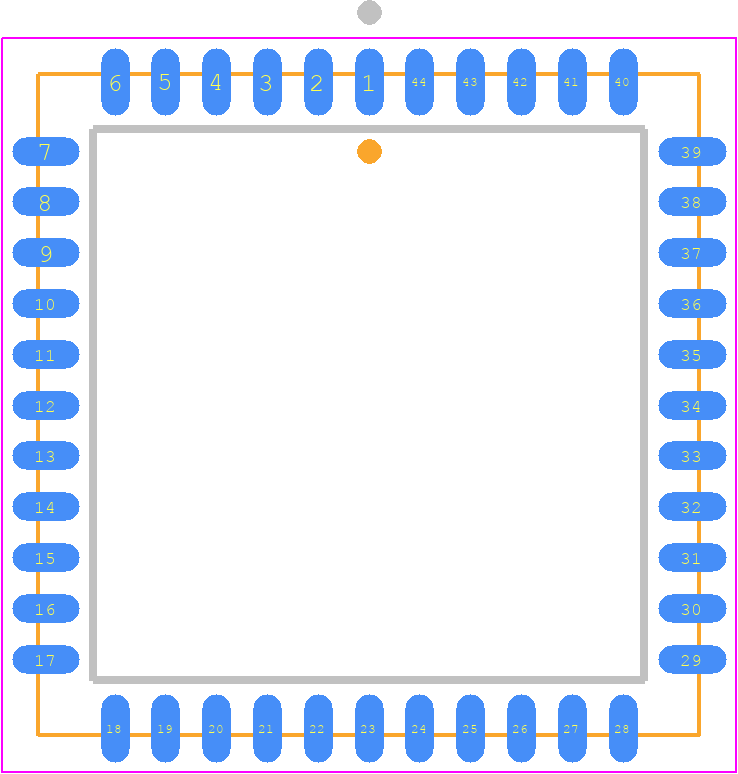

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38534 Class G

• Seated Height-Max:

  3.63 mm

• Signal/Output Frequency:

  20000 Hz

• Supply Current-Max:

  22 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Tracking Rate-Max:

  0.125 rps

• Width:

  16.51 mm
