RDC-20-232-75X+ - Mini-Circuits

Description: RF Directional Coupler General Purpose 5MHz ~ 2.35GHz 20.2 ± 1.3dB 1W 6-SMD Module

Download RDC-20-232-75X+ Model

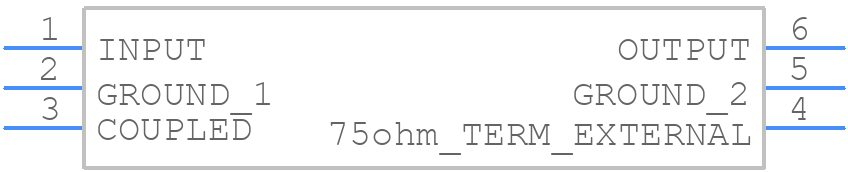

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RDC-20-232-75X+ - Mini-Circuits PCB footprint - Other - Other - TT2315_2025
click to zoom
3D Models
RDC-20-232-75X+ - Mini-Circuits  - 3D model - Other - TT2315_2025
click to zoom

RDC-20-232-75X+ Details

  • Manufacturer Part Number:

    RDC-20-232-75X+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.34

  • Characteristic Impedance:

    75 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2350 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.13
