XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the RDD0824S05 is designed to withstand high-vibration environments. It has been tested to meet the IEC 60068-2-6 standard for vibration resistance. However, it's recommended to consult with XP Power's application engineers to ensure the module meets the specific vibration requirements of your application.
To ensure reliability in high-temperature environments, it's essential to follow XP Power's derating guidelines for temperature. The module's output power should be derated by 2.5% per degree Celsius above 50°C. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to improve heat dissipation.
XP Power recommends using a fuse with a rating of 2A to 5A, depending on the input voltage and the specific application requirements. The fuse should be able to handle the module's peak inrush current, which is specified in the datasheet.
Yes, the RDD0824S05 can be used in a redundant configuration to achieve high availability and reliability. However, it's essential to consult with XP Power's application engineers to ensure the redundant configuration meets the specific requirements of your application, including the necessary isolation and synchronization requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RDD0824S05 Overview

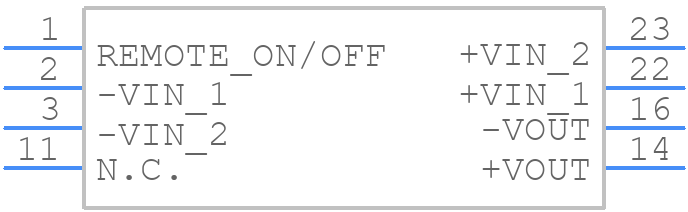

Use the download button to access the RDD0824S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDD08,
or try a keyword search, such as Power Supply Modules
