XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the RDE20110D12 is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which ensures it can operate reliably in applications with vibrations up to 10G peak acceleration.
The RDE20110D12 has an internal input filter that meets the EN 55022 Class A and FCC Part 15 Class A EMC standards. However, to ensure compliance with your system's specific EMC requirements, you may need to add additional external filtering components. Consult with XP Power's application engineers for guidance on custom filter designs.
XP Power recommends keeping the output cable length as short as possible to minimize voltage drops and ensure reliable operation. However, if longer cables are necessary, the maximum recommended length is 12 inches (30 cm) for the 10A output and 6 inches (15 cm) for the 20A output.
Yes, you can parallel multiple RDE20110D12 modules to increase the output current. However, it's essential to ensure that the modules are properly synchronized and that the output currents are balanced to prevent uneven current sharing. Consult with XP Power's application engineers for guidance on parallel operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RDE20110D12 Overview

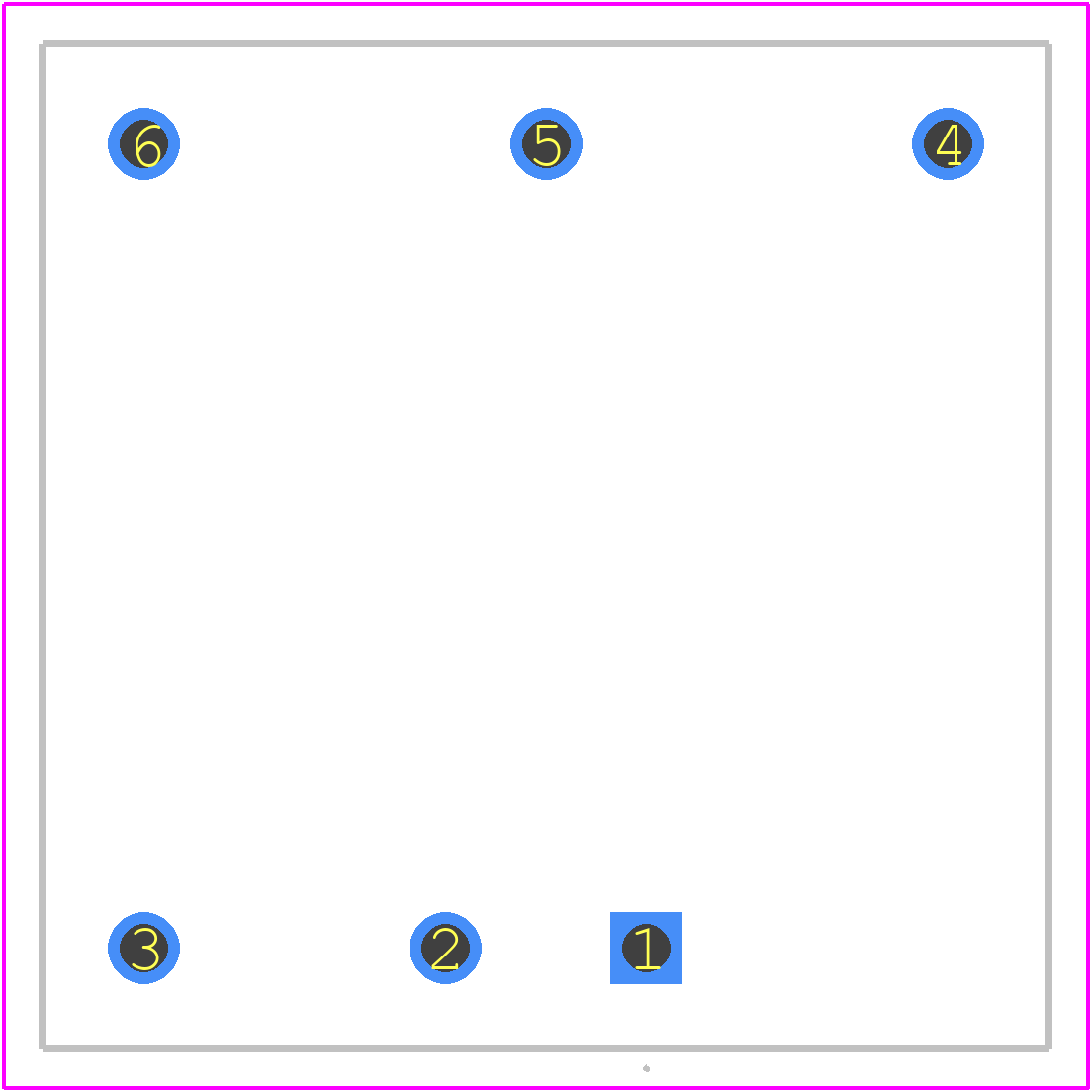

Use the download button to access the RDE20110D12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDE20,
or try a keyword search, such as Power Supply Modules
