RDER72J102K2M1H03A - Murata Electronics

Description: Multilayer Ceramic Capacitor, 1000 pF, 630 V, ± 10%, Radial Leaded, X7R, 5 mm

Download RDER72J102K2M1H03A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RDER72J102K2M1H03A - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

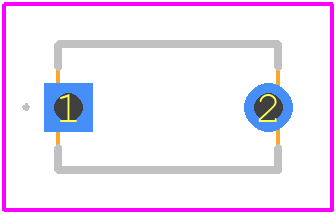

RDER72J102K2M1H03A - Murata Electronics PCB footprint - Other - Other - RDER72J102K2M1H03A-2
click to zoom
3D Models
RDER72J102K2M1H03A - Murata Electronics - 3D model - Other - RDER72J102K2M1H03A-2
click to zoom

RDER72J102K2M1H03A Details

  • Manufacturer Part Number:

    RDER72J102K2M1H03A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.001 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    4 mm

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    null

  • Packing Method:

    AMMO PACK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    630 V

  • Size Code:

    2212

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.15 mm

RDER72J102K2M1H03A Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.2mm x 1.6mm, with a spacing of 0.5mm between pads. Refer to Murata's recommended land pattern document for more details.
  • The RDER72J102K2M1H03A is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency circuits and can help reduce electromagnetic interference (EMI).
  • Yes, the RDER72J102K2M1H03A is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications. It can operate in temperatures ranging from -55°C to 125°C, making it suitable for use in automotive systems.
  • The maximum operating voltage for the RDER72J102K2M1H03A is 100V. Exceeding this voltage may result in reduced reliability or even failure of the capacitor.
  • The RDER72J102K2M1H03A is designed to be resistant to moisture and humidity. It has a moisture sensitivity level of 3, which means it can withstand exposure to moisture and humidity without significant degradation.
