OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.08484 Vrms
Screening Level:
UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
150 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.2 s
Width:
57.9 mm
RDF15072S24 Frequently Asked Questions (FAQs)
XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the RDF15072S24 is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. XP Power recommends following the IPC-9592 standard for vibration testing.
The RDF15072S24 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance, engineers should follow the recommended layout and assembly guidelines provided by XP Power, and perform any necessary testing and certification for their specific application.
The maximum allowable capacitance for the output filter is 47μF. Exceeding this value may affect the stability and performance of the module. Engineers should consult the datasheet and application notes for guidance on output filter design.
Yes, the RDF15072S24 can be used in a redundant configuration to achieve high availability and reliability. However, engineers should ensure that the modules are properly synchronized and that the system is designed to handle the redundancy. XP Power recommends consulting their application notes and technical support for guidance on redundant configurations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RDF15072S24 Overview

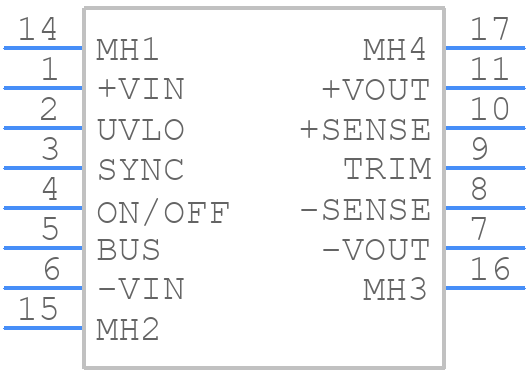

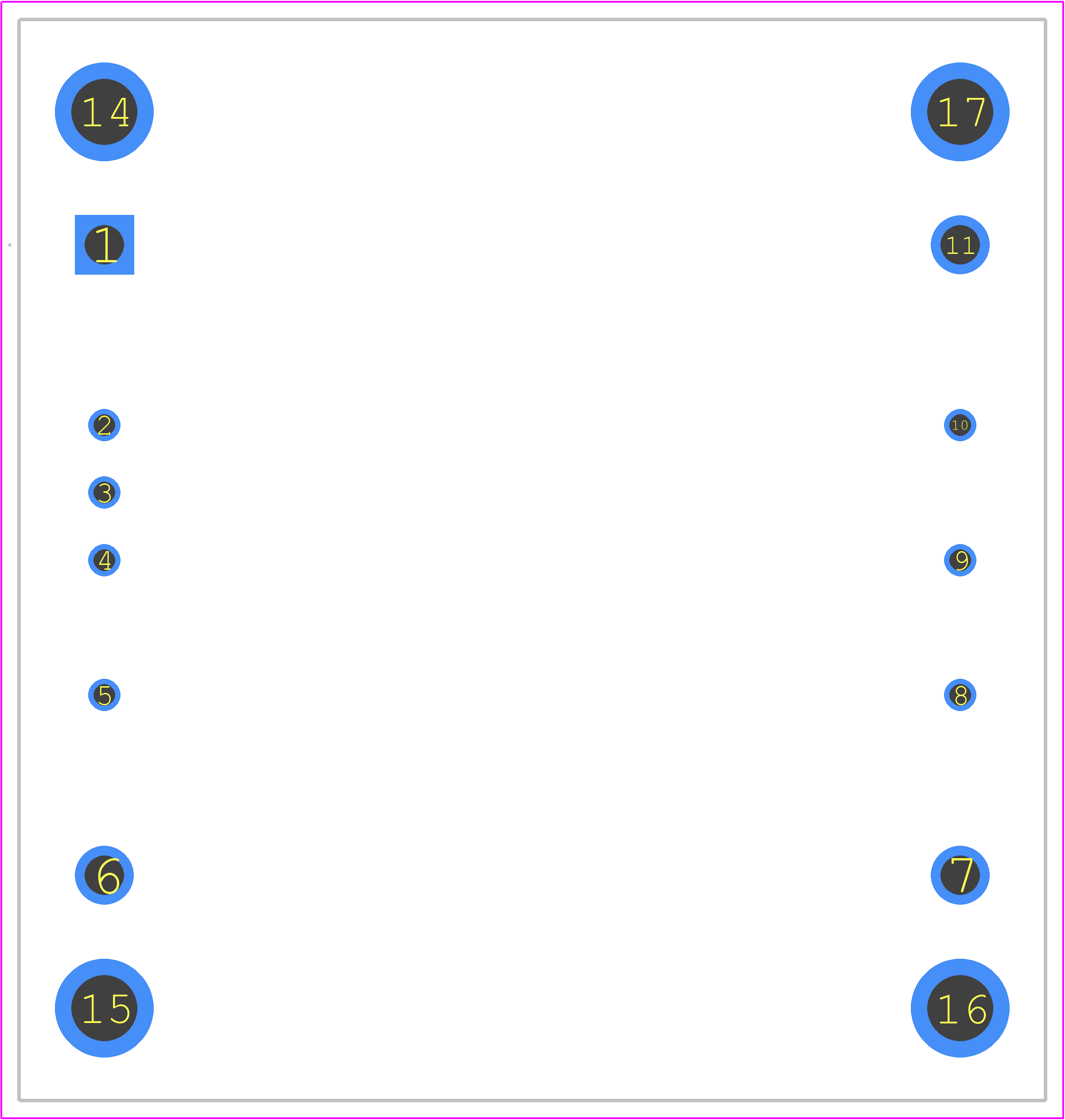

Use the download button to access the RDF15072S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDF15,
or try a keyword search, such as Power Supply Modules
