XP Power recommends a PCB layout with a large copper area connected to the tab of the RDF2572S12 to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate to further improve thermal performance.
To ensure reliable start-up, XP Power recommends a soft-start circuit to limit the inrush current during power-on. Additionally, a sufficient input capacitance (e.g., 10uF or higher) should be used to filter out input voltage ripple and ensure stable operation.
The maximum allowed capacitance on the output of the RDF2572S12 is 47uF. Exceeding this value may cause instability or oscillation in the output voltage. It's essential to follow the recommended output capacitance value to ensure reliable operation.
Yes, the RDF2572S12 is designed to withstand high-vibration environments. However, it's essential to follow XP Power's recommended PCB mounting and screw torque guidelines to ensure the device remains securely attached to the PCB and can withstand vibrations up to 10G.
To troubleshoot issues with the RDF2572S12, XP Power recommends checking the input voltage, output load, and PCB layout for any anomalies. Verify that the input voltage is within the specified range, and the output load is within the recommended current rating. Also, ensure that the PCB layout follows the recommended guidelines for thermal performance and noise reduction.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RDF2572S12 Overview

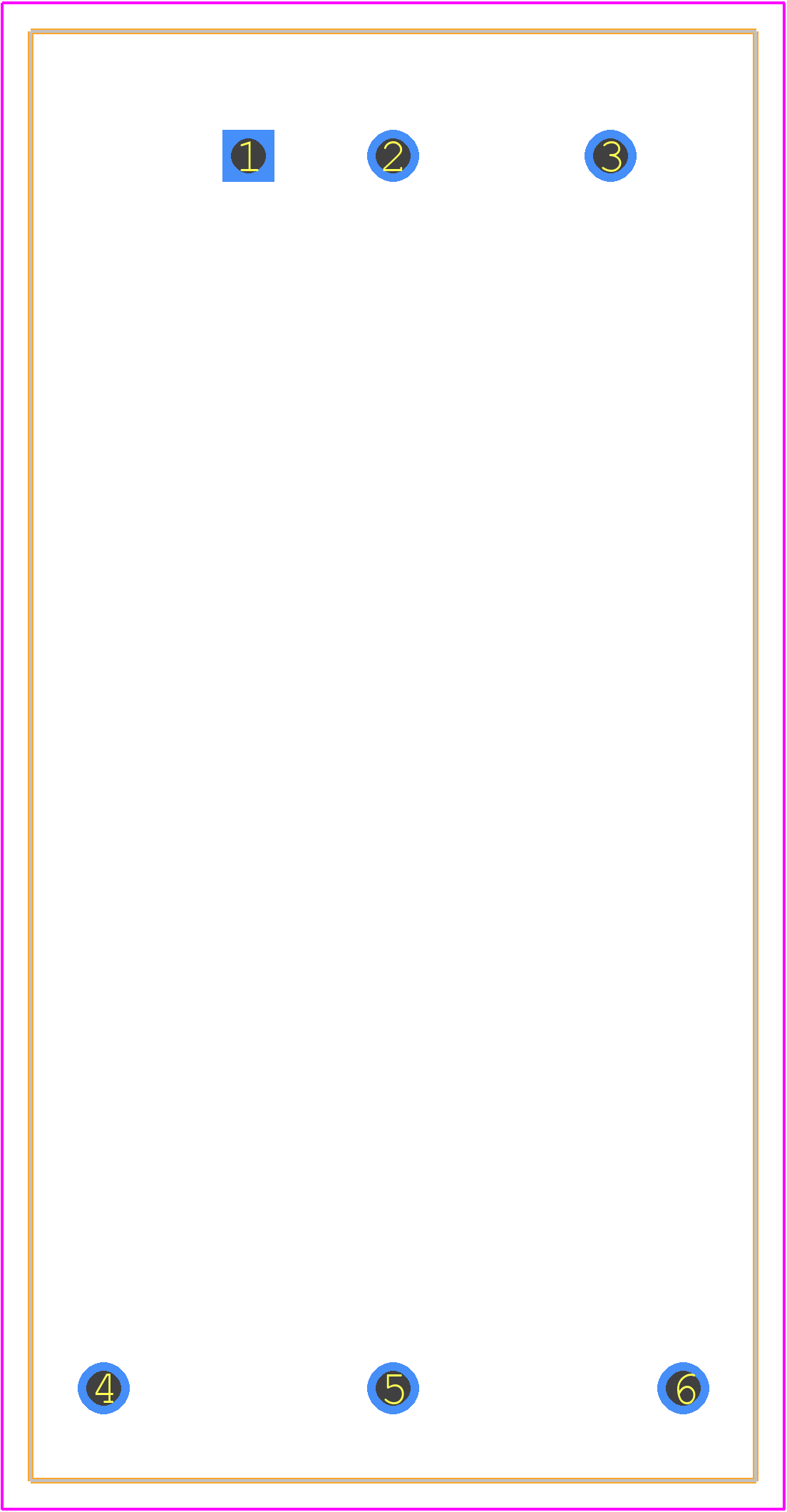

Use the download button to access the RDF2572S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDF25,
or try a keyword search, such as Power Supply Modules
