Part Image

RDF5072WS24 - XP POWER

Description: XP Power RDF50 50W Isolated DC-DC Converter Through Hole, Vin 14 → 160 V dc, Vout 24V dc Railway Approved, I/O

Download RDF5072WS24 Model

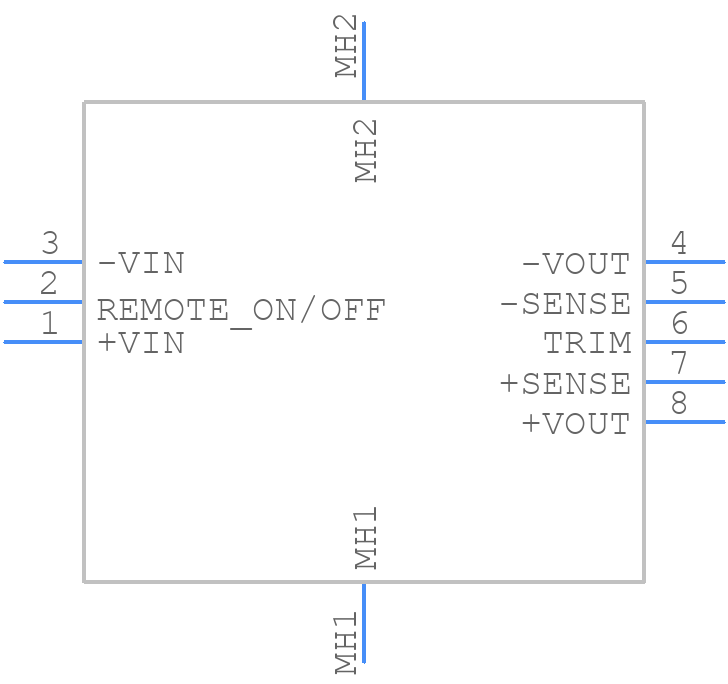

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

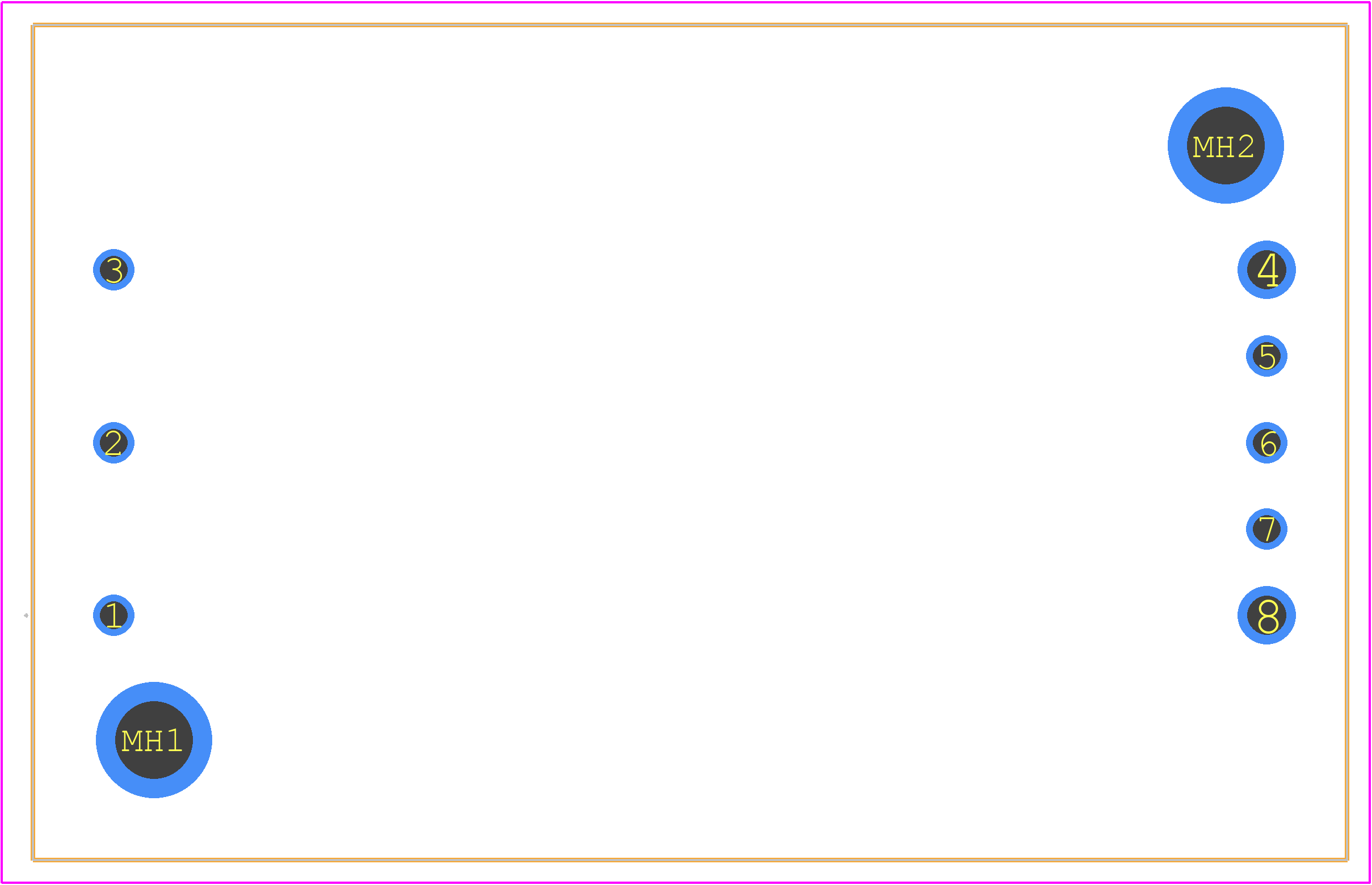

RDF5072WS24 - XP POWER PCB footprint - Other - Other - RDF5072WS24-2
click to zoom

3D Models

RDF5072WS24 - XP POWER  - 3D model - Other - RDF5072WS24-2
click to zoom

RDF5072WS24 Details

  • Manufacturer Part Number:

    RDF5072WS24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • Risk Rank:

    2.33

  • YTEOL:

    7.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    EN, UL

  • Efficiency (Main Output):

    89%

  • Height:

    13.2 mm

  • Input Voltage-Max:

    160 V

  • Input Voltage-Min:

    14 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    57.9 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.1 A

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    19.2 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.08484 Vrms

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    220 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    50 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.015 s

  • Width:

    36.8 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RDF5072WS24 Overview

Use the download button to access the RDF5072WS24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDF50, or try a keyword search, such as Power Supply Modules
